Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool

Description du produit

Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool

The latest BT100 12 Volt Automotive Battery Analyzer from Vident is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries.
It provides a quick, easy and affordable solution for technicians to view battery charging status, check battery health and detect faults.



Highlights:

1. Multiple vehicle applications – passenger cars and light duty trucks
2. Tests batteries rated from 100 to 1100CCA

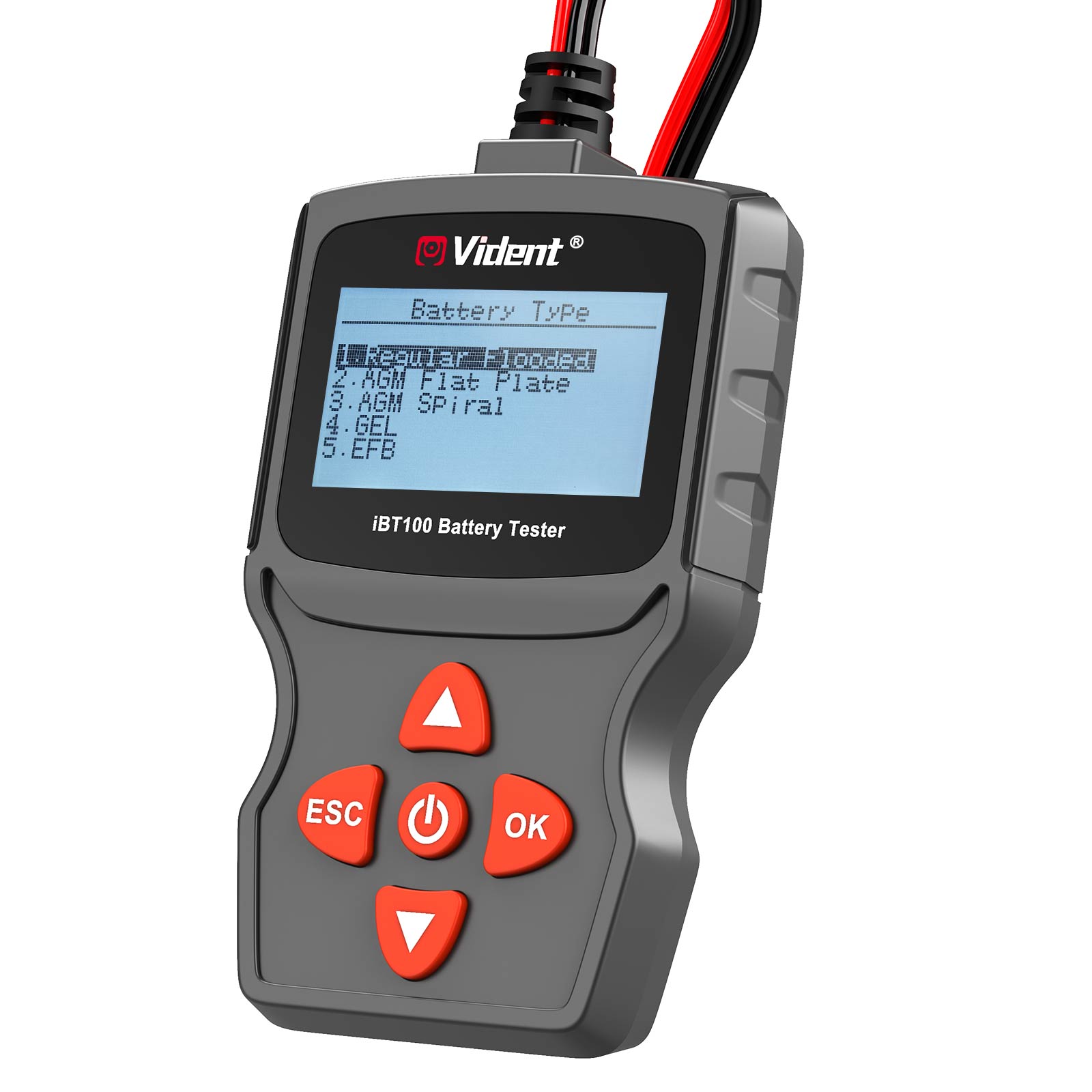

3. Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and GEL
4. Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE
5. Tests the batteries on the car directly - no need to remove the battery. Detects bad cells
6. Quick and accurate test result display in just 3 seconds
7. Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users , automatic temperature compensation

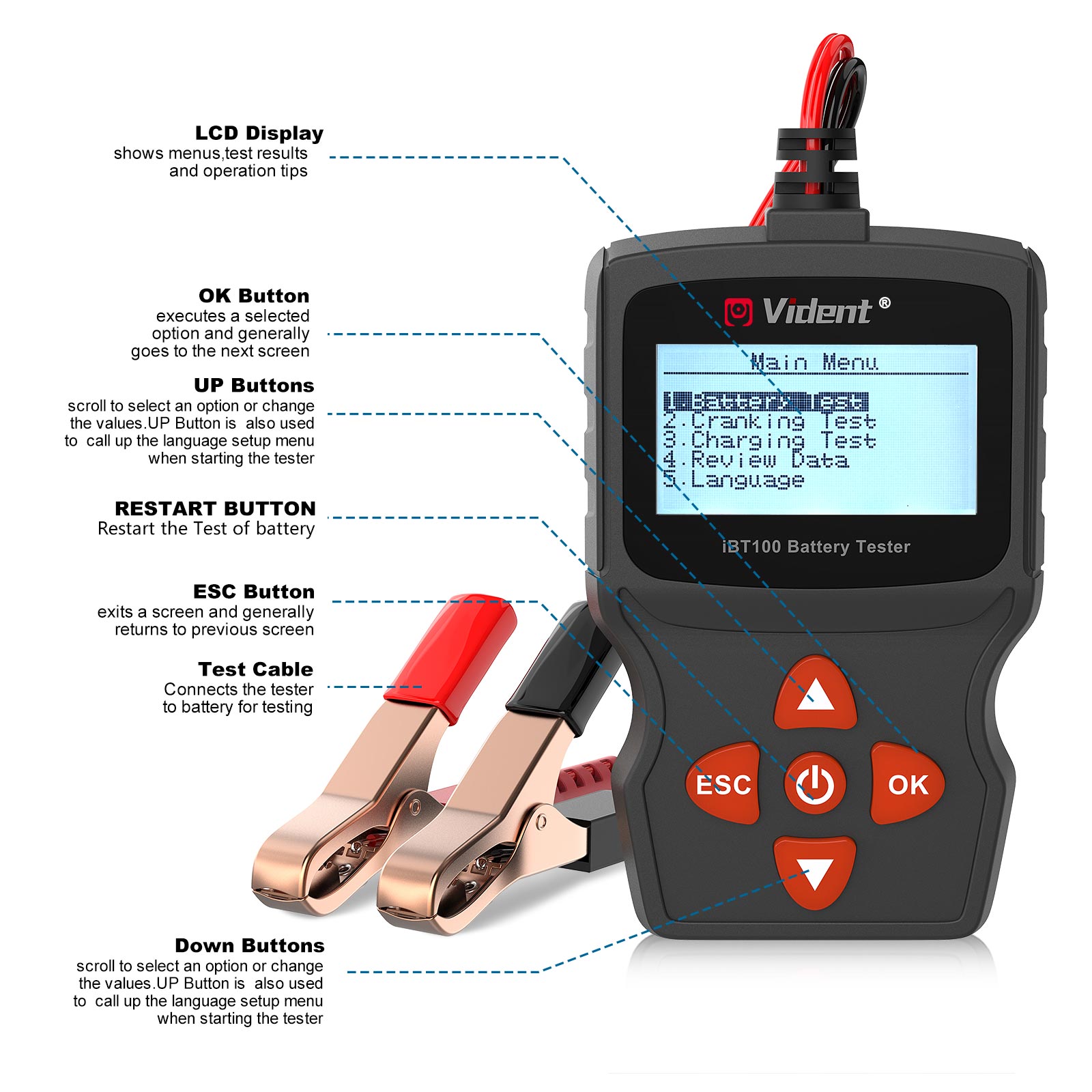

8. Extremely easy to use with large backlight LCD display and menu-driven operation
9. Mulit-Language: English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Dutch,Turkish.




	Multiple vehicle applications – passenger cars and light duty trucks
	Tests batteries rated from 100 to 1100CCA
	Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and GEL
	Tests multiple rating systems - CCA, CA, MCA, JIS, DIN, IEC, EN, SAE
	Tests the batteries on the car directly - no need to remove the battery
	Detects bad cells
	Quick and accurate test result display in just 3 seconds
	Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users
	Automatic temperature compensation
	Extremely easy to use with large backlight LCD display and menu-driven operation
	Multilingual menu and test results – English, French, German,Spanish, Italian,Dutch, Polish, Swedish, Portuguese, Russian

Global Rating Systems


No.	Standard	Description	iBT100 Testing Range
1	CCA	Cold Cranking Amps, as specified by SAE. The most common rating for cranking batteries at 0°F (-18°C)	100-1100
2	CA	Cranking Amps standard. The effective starting current value at 0°C (32°F).	100-1100
3	MCA	Marine Cranking Amps standard. The effective starting current value at 0°C (32°F).	100-1100
4	JIS	Japanese Industry Standard, shown on a battery as a combination of numbers and letters	26A17-245H52
5	DIN	Deutsche Industrie-Norm	100-1100
6	IEC	International Electrotechnical Commission	100-1100
7	EN	Europa-Norm	100-1100
8	SAE	Society of Automotive Engineers	100-1100

Specification


Item	Range	Accuracy
Voltage measuring	6V to 18V	0.50%
Battery type	Flooded, AGM, GEL	N/A
Battery rating	100 - 1100CCA	±(3%+10)CCA
Standard support	CCA, CA, MCA, JIS, DIN, IEC, EN, SAE	N/A
Operation Temperature	0 to 60°C (-4 to 140°F)	N/A
Storage Temperature	0 to 70°C (-4 to 158°F)	N/A
Dimensions: 125mm(4.0”)*80mm(2.96’’)*24mm(0.78”)
Weight:  240g
QTY/CTN: 50SETS
Weight/CTN:19.2KG
CTN MEAS: 35.5*34.5*53.3cm

Package includes:

1PC x iBT100 Battery Analyzer
1PC x User’s Manual
