OBDSTAR MS50 Moto Immo Codage et Diagnostic Appareil 2 Year Update
Achat immédiat: €513
Immo et Diagnostic: MS50
2 Immo et Diagnostic: MS50
Des produits expédiés depuis l'entrepôt européen, rapide et pas de tax
Contactez-nous pour un meilleur prix
Whatsapp: +86 17308368390
Contactez-nous pour un meilleur prix
Whatsapp: +86 17308368390
Livraison:
Livraison Express ServiceDélai de livraison estimé: 8-12 jours de travail. Détails »
Poids:
4.5KG
Paquet:
44.8cm*13.2cm*34cm
( Inch: 17.59*5.18*13.35 )
Résultats:
Retour de remboursement dans 30 jours, l'acheteur paie les frais de retour. Lire les Détails »
Description du produit

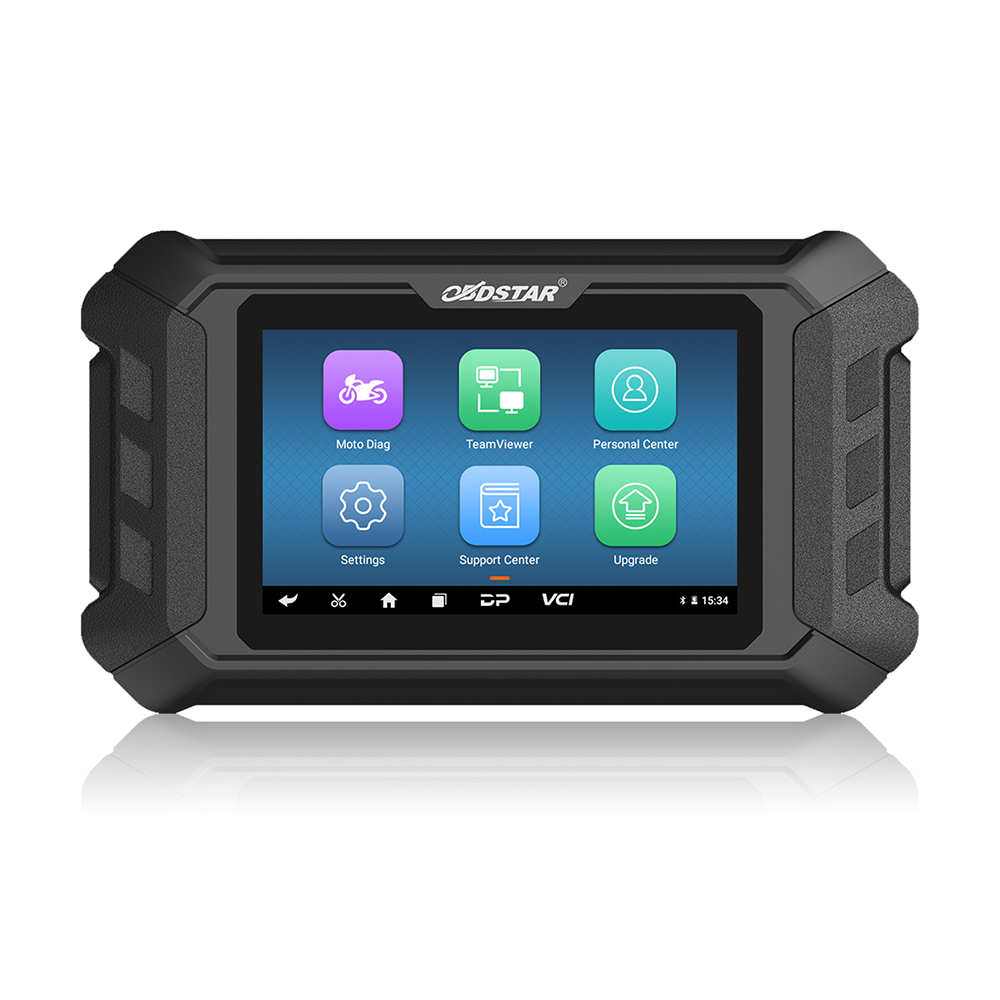

OBDSTAR MS50 est une tablette portable dotée de super performances et d'un design d'aspect industriel. Il s'agit d'une nouvelle génération d'équipements de diagnostic de motos intelligents adaptés aux clients.

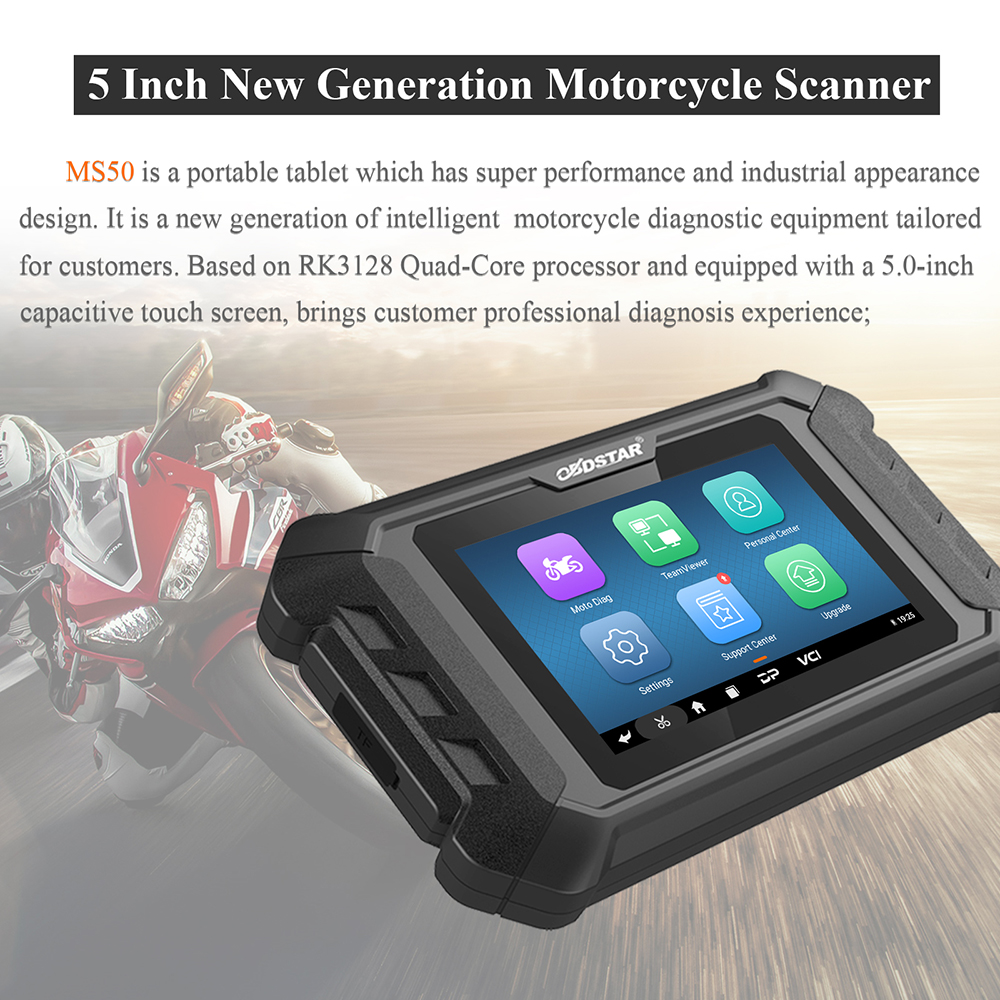

OBDSTAR MS50 DescriptionMS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
OBDSTAR MS50 Function:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation

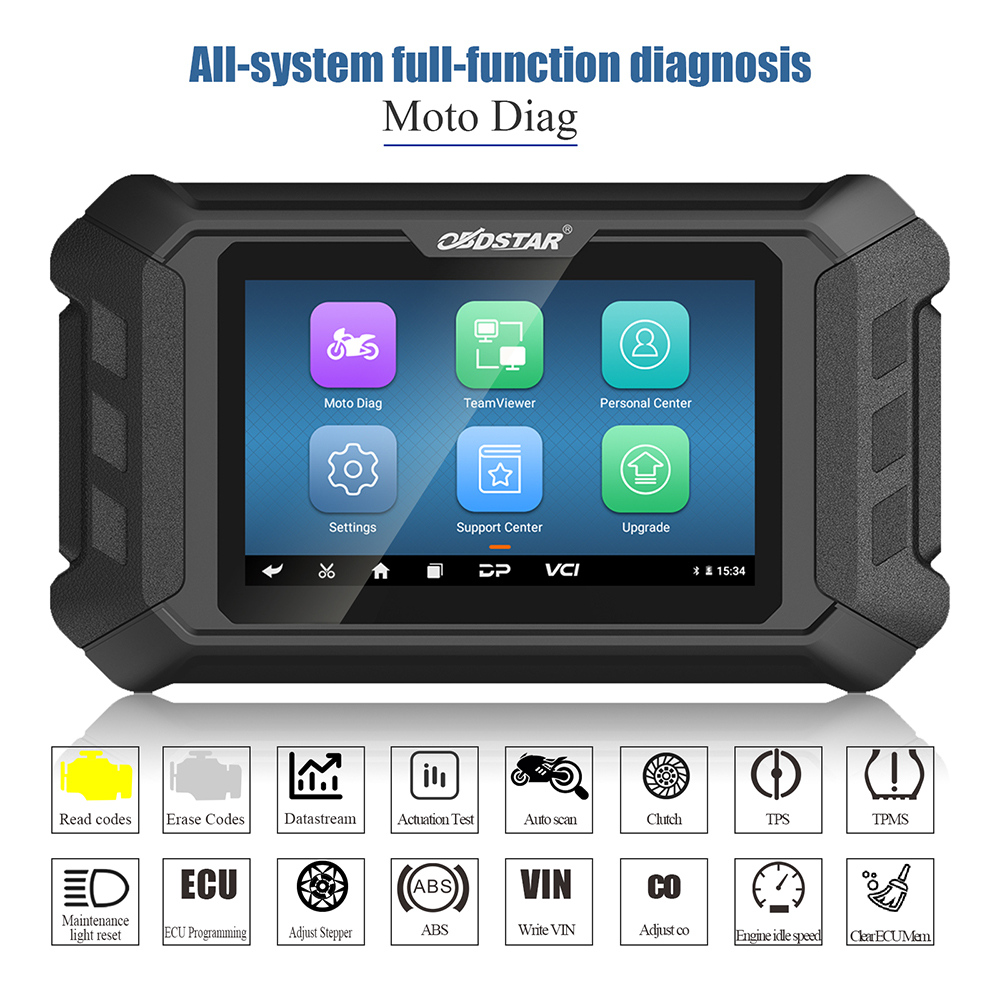

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.
4. Menu Arbitrary selection is more convenient and quick
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults
6. Wi-Fi connection to the Internet, one-click software upgrade
7. One-Click remote function, OBDSTAR technical staff remote assistance

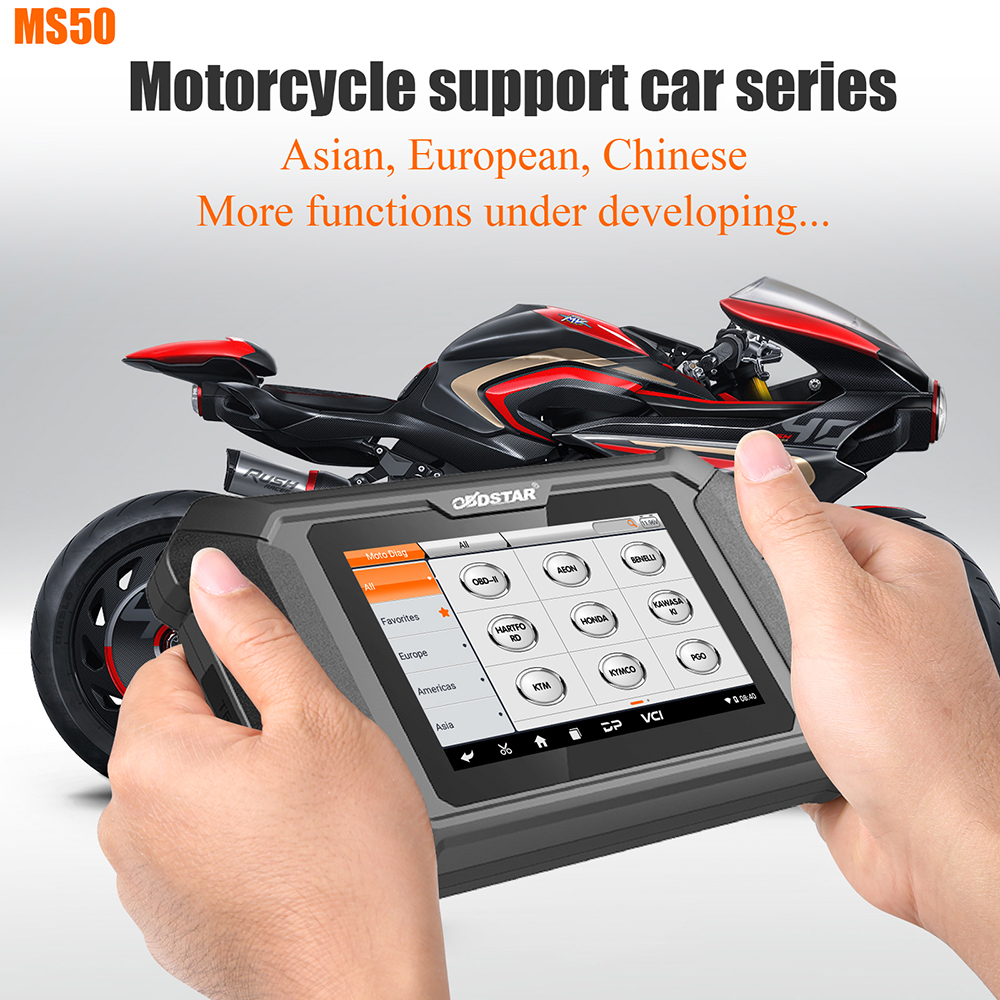

8. Support most of the Asia and Europe models
OBDSTAR MS50 Advantage Function:
OBDSTAR MS50 Parameters:OBDSTAR MS50 Advantage Function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.
Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD：5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -20℃～55℃(14℉～131℉)
Storage temperature: -20℃～70℃(-4℉～158℉)
Weight: 700g(Main Unit)

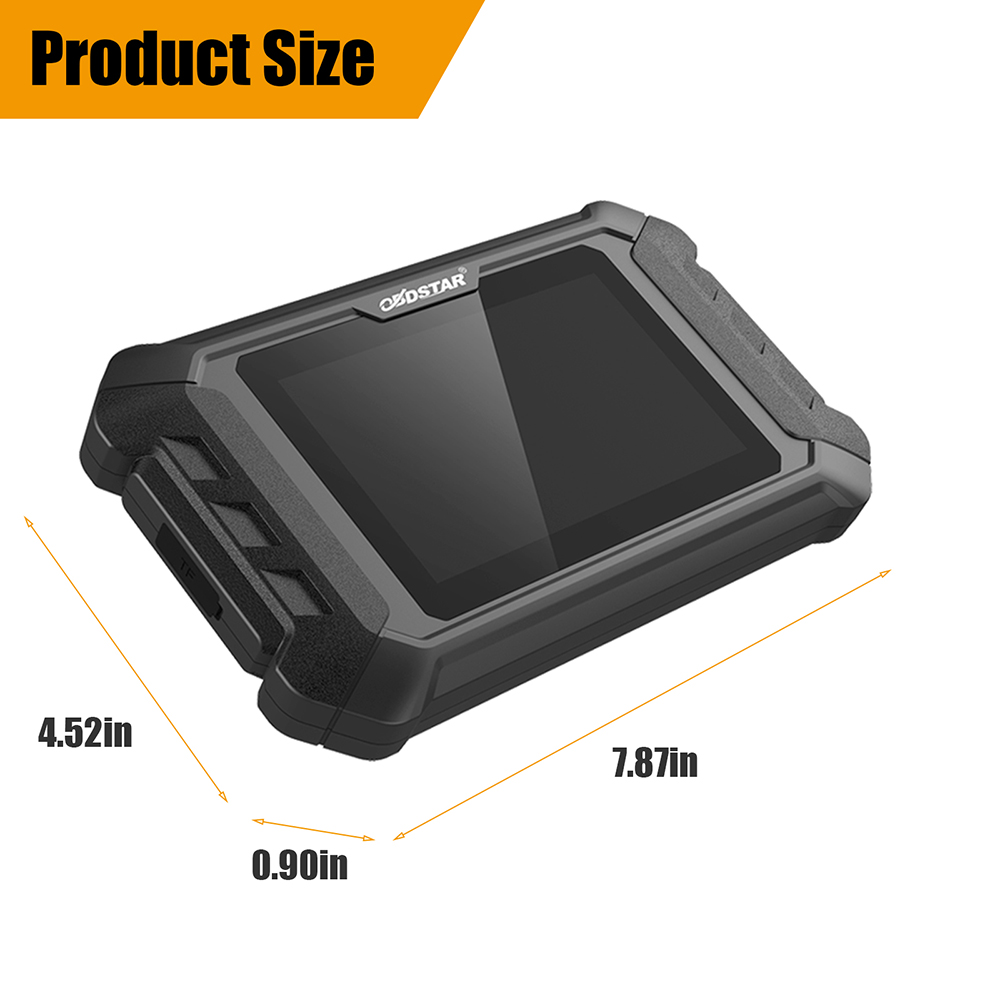

Dimension: 140mm*89mm*18mm
OBDSTAR MS80 Moto MS80 VS MS50:
| MS50 Support Models | ||||
| Motorcycle Diagnosis | Asia | HONDA | √ | |
| KAWASAKI | √ | |||
| KYMCO | √ | |||
| SUZUKI | √ | |||
| SYM | √ | |||
| YAMAHA | √ | |||
| MONTESA | ||||
| PGO | √ | |||
| HARTFORD | √ | |||
| AEON | √ | |||
| BENELLIDSK | ||||
| European | APRILIA | |||
| BENELLI | √ | |||
| BMW | ||||
| DUCATI | ||||
| KTM | √ | |||
| PIAGGIO | √ | |||
| TRIUMPH | ||||
| VESPA | √ | |||
| MALAGUTI | ||||
| GASGAS | ||||
| GILERA | ||||
| GUZZI | ||||
| AGUSTA | ||||
| DERBI | ||||
| PEUGEOT | ||||
| America | HARLEY | |||
| INDIAN | ||||
| VICTORY | ||||
| BRP | ||||
| OBD | OBD | √ | ||
OBDSTAR MS80 Moto MS80 VS MS50:
| Item | MS80 | MS50 | ||
| Picture |  |
 |
||
| Diag Cable | High Quality，low price | High Quality，low price | ||
| Main machine | 8 inch android tablet | 5 inch android tablet，OBD charge | ||
| Plastic Cover | Industrial Design | Industrial Design | ||
Smart switch pin |
Highly integrated diagnostic connector | Highly integrated diagnostic connector | ||
| Diag Connector | OBD adapter, no need to disassemble | OBD adapter, no need to disassemble | ||
| Operation System | Android | Android | ||
| Wifi | one button click | one button click | ||
| Language | English | English | ||
| Remote assistance | Yes, engineer can assistant via remote control software | Yes, engineer can assistant via remote control software | ||
| IMMO | European | TRIUMPH | √ | |
| GILERA | √ | |||
| PEUGEOT | √ | |||
| PIAAGIO | √ | |||
| DUCATI | √ | |||
| VESPA | √ | |||
| America | HARLEY | √ | ||
| Motorcycle Diagnosis | Asia | HONDA | √ | √ |
| KAWASAKI | √ | √ | ||
| KYMCO | √ | √ | ||
| SUZUKI | √ | √ | ||
| SYM | √ | √ | ||
| YAMAHA | √ | √ | ||
| MONTESA | √ | |||
| PGO | √ | √ | ||
| HARTFORD | √ | √ | ||
| AEON | √ | √ | ||
| BENELLIDSK | √ | |||
| European | APRILIA | √ | ||
| BENELLI | √ | √ | ||
| BMW | √ | |||
| DUCATI | √ | |||
| KTM | √ | √ | ||
| PIAGGIO | √ | √ | ||
| TRIUMPH | √ | |||
| VESPA | √ | √ | ||
| MALAGUTI | √ | |||
| GASGAS | √ | |||
| GILERA | √ | |||
| GUZZI | √ | |||
| AGUSTA | √ | |||
| DERBI | √ | |||
| America | HARLEY | √ | ||
| INDIAN | √ | |||
| VICTORY | √ | |||
| BRP | √ | |||
| OBD | OBD-II | OBD | √ | √ |
| Motorboat Diagnosis | Asia | HONDABOAT | √ | |
| Accessories | ||||
| M001 | Main Cable | √ | √ | |
| M002 | Power Cable | √ | √ | |
| M002A | GND | √ | ||
| M003A | Multi functional jumper | √ | √ | |
| M004 | APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA | √ | √ | |
| M005 | KAWASAKI | √ | √ | |
| M006 | KAWASAKI | √ | ||
| M012 | SUZUKI | √ | √ | |
| M015A | HONDA/HONDA MONTESA | √ | √ | |
| M018 | YAMAHA | √ | √ | |
| M019 | KTM | √ | √ | |
| M021 | AEON/BENELLI/BENELLI DSK | √ | √ | |
| M026 | SYM | √ | √ | |
| M027 | KYMCO/KAWASAKI | √ | √ | |
| M028 | pgo | √ | ||
| M030 | HARDFORD | √ | ||
| M034 | HARLEY-DAVIDSON | √ | ||
| M037 | DUCATI | √ | ||
| M040 | BMW | √ | ||
| M041 | EURO V | √ | √ | |
| M042 | INDIAN/VICTORY | √ | ||
| M043 | BRP | √ | ||
| P001 | IMMO KIT(Optional) | |||
| 12V2A | CHARGER | √ | √ | |
| Support system | 1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems |
1. Comparable to the original factory 2. Full coverage of engine, ABS, traction control, airbag, instrumentation, power steering, alarm, chassis management, body, headlights, battery management, tire pressure, frame, anti-theft, suspension, radio, handle, and other systems |
||
| Advanced Function | Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.) | Comparable to the original factory (automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit Settings, EOL mode, transmission memory reset, clear computer memory, etc.) | ||
| Diagnostic connector location | √ | √ | ||
| Diagnostic connector Display | √ | √ | ||
| Technical Bulletin | √ | √ | ||
| Fault Guidance | √ | √ | ||
| Data Flow Text/ Waveform Diagram | √ | √ | ||
| Instrument Diagram | √ | √ | ||
| Any menu back | √ | √ | ||
| Interactive Circuit diagram | √ | -- | ||
| Components Description | √ | -- | ||

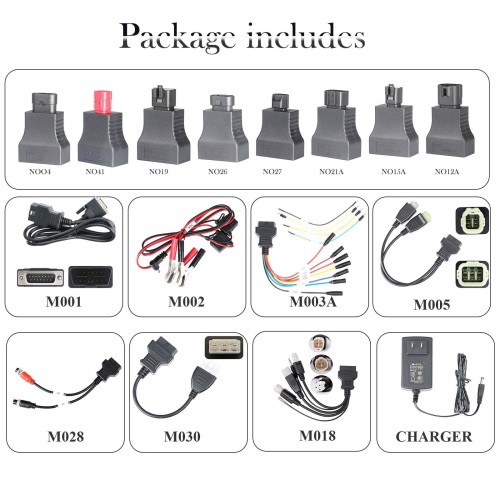

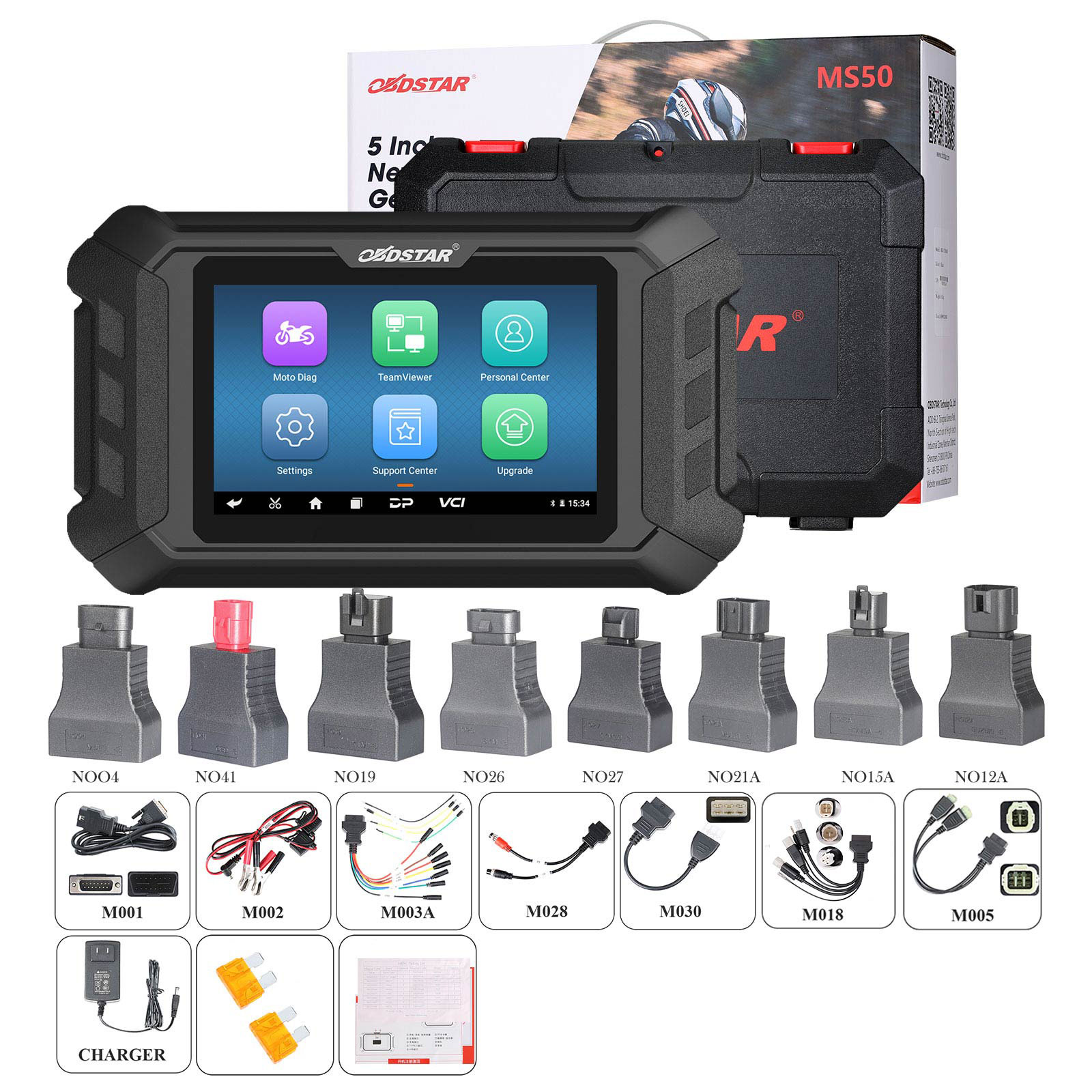

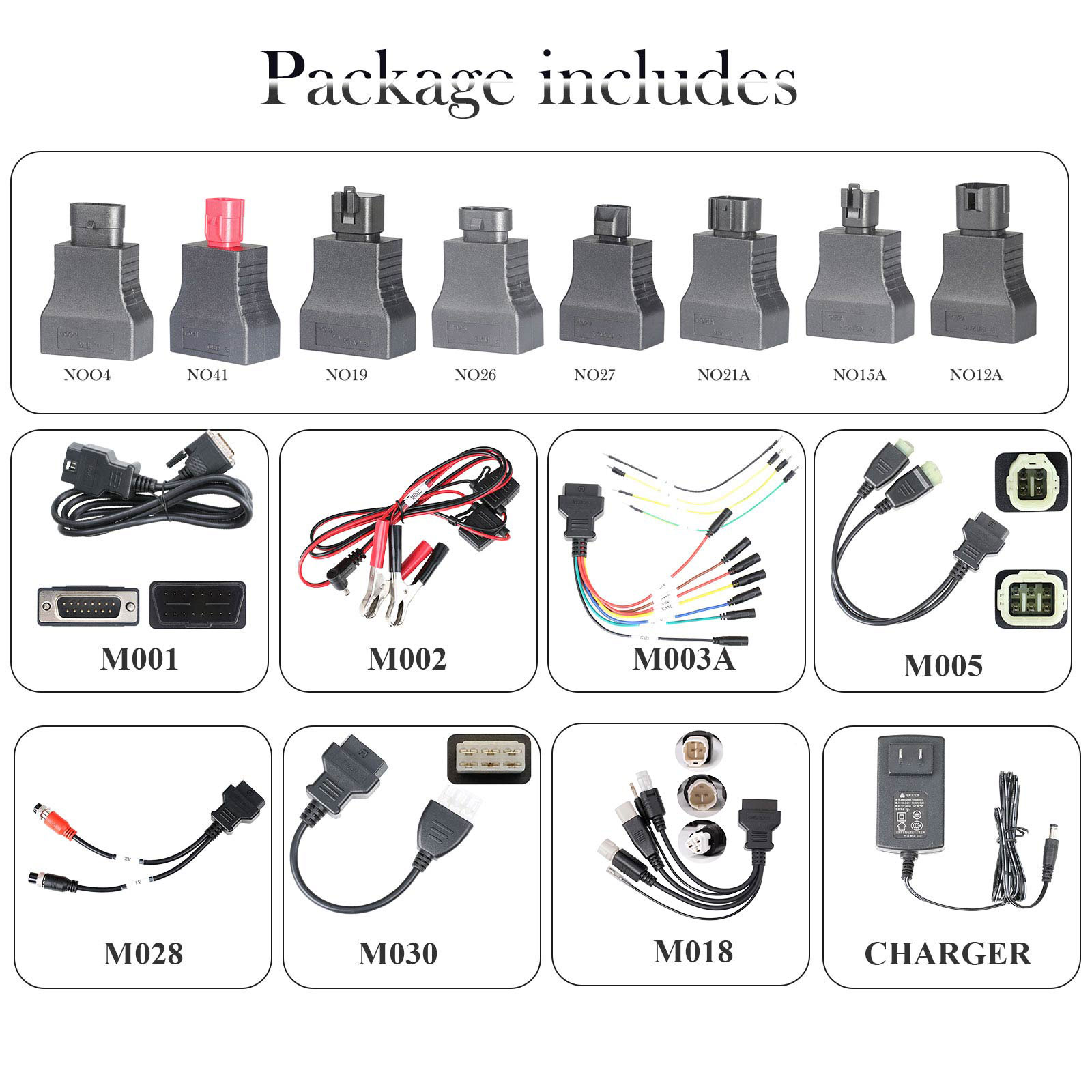

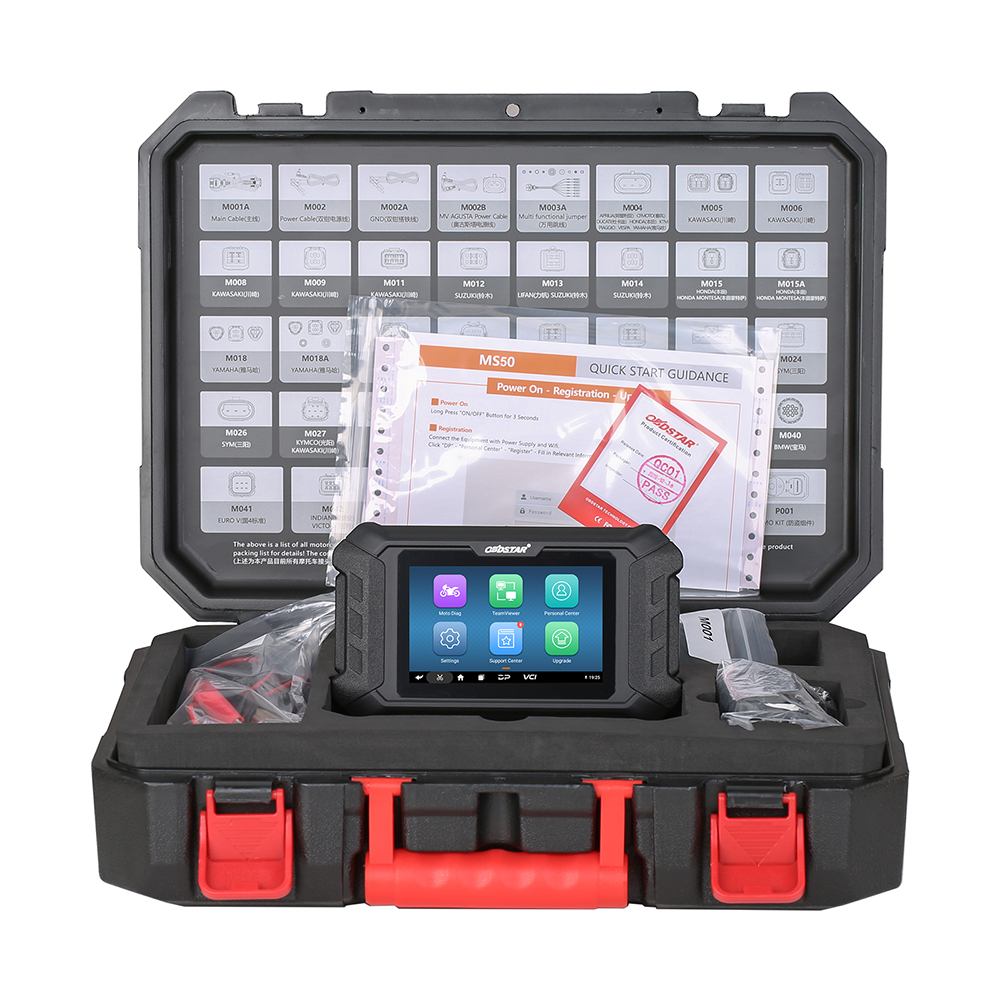

Package includes:
1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x M005 KAWASAKI
1pc x M018 YAMAHA
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x 12V2A CHARGER
1pc x NOO4 Adapter
1pc x NO41 Adapter
1pc x NO19 Adapter
1pc x NO26 Adapter
1pc x NO27 Adapter
1pc x NO12 Adapter
1pc x NO15A Adapter
1pc x NO21A Adapter
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x M005 KAWASAKI
1pc x M018 YAMAHA
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x 12V2A CHARGER
1pc x NOO4 Adapter
1pc x NO41 Adapter
1pc x NO19 Adapter
1pc x NO26 Adapter
1pc x NO27 Adapter
1pc x NO12 Adapter
1pc x NO15A Adapter
1pc x NO21A Adapter
