OBDSTAR C4-07(MB-VGS4-0-NAG2) Adapter Kit Full Configuration



Designed for drilling access to the FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Module (TCM), OBDSTAR C4-07 (MB-VGS4-0-NAG2) adapter kit supports solder-free virginizing of used TCM via JTAG mode. It also supports personalization (data transfer) via BENCH or OBD mode, achieving the same effect as ECU clone. This eliminates the requirement for automotive electronics technicians to have advanced soldering skills, making it a powerful tool for professionals in the field.





Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz;

Support solder-free virginizing of used TCM via JTAG mode;

Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.





Custom positioning board for precise and secure drilling access to the control unit;

Used together with the custom drill head and a handheld drill, the TCM can be easily opened with minimal exterior damage;

High-precision custom board enabling safe, solder-free read/write operations—ensuring reliable data access and operational safety.

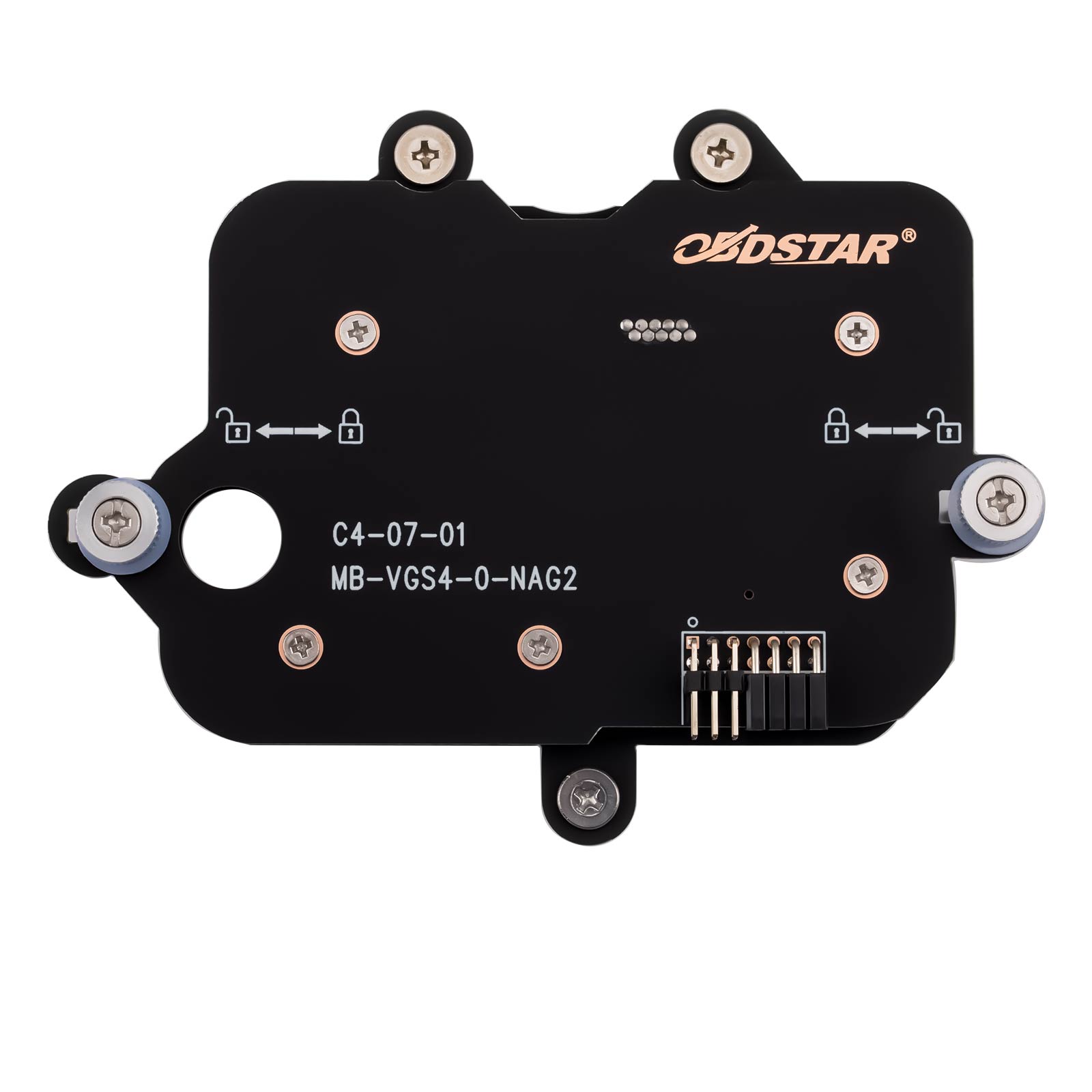

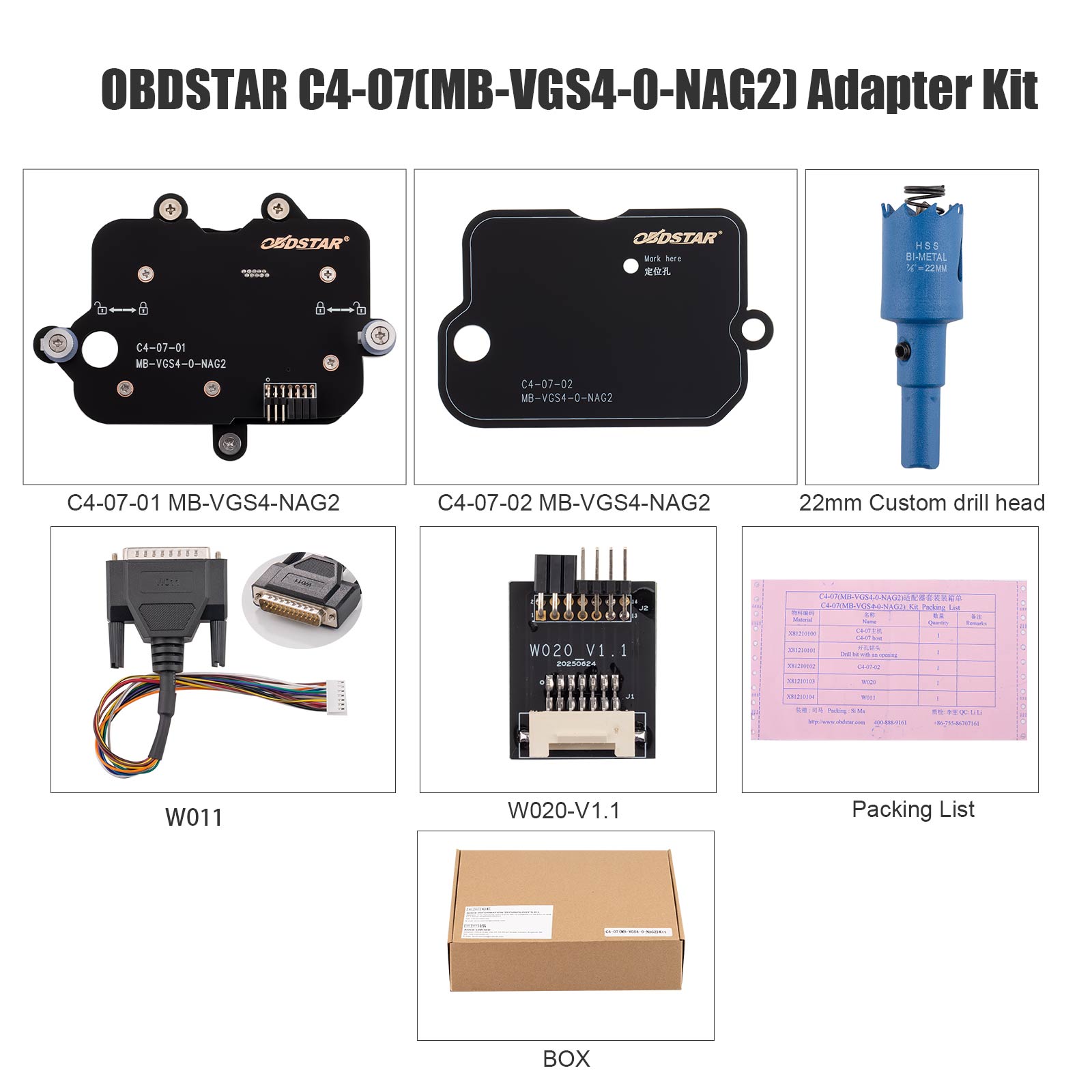

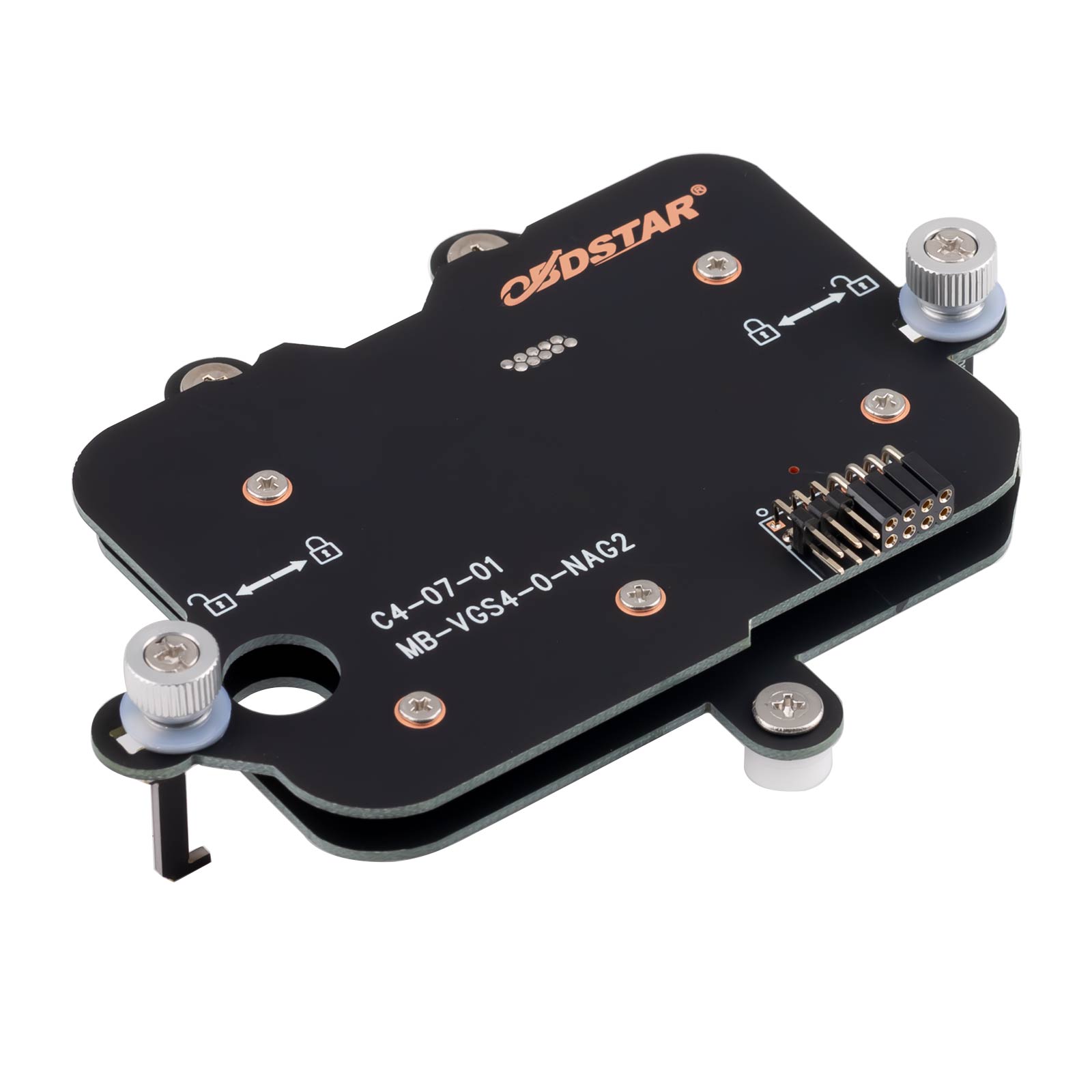

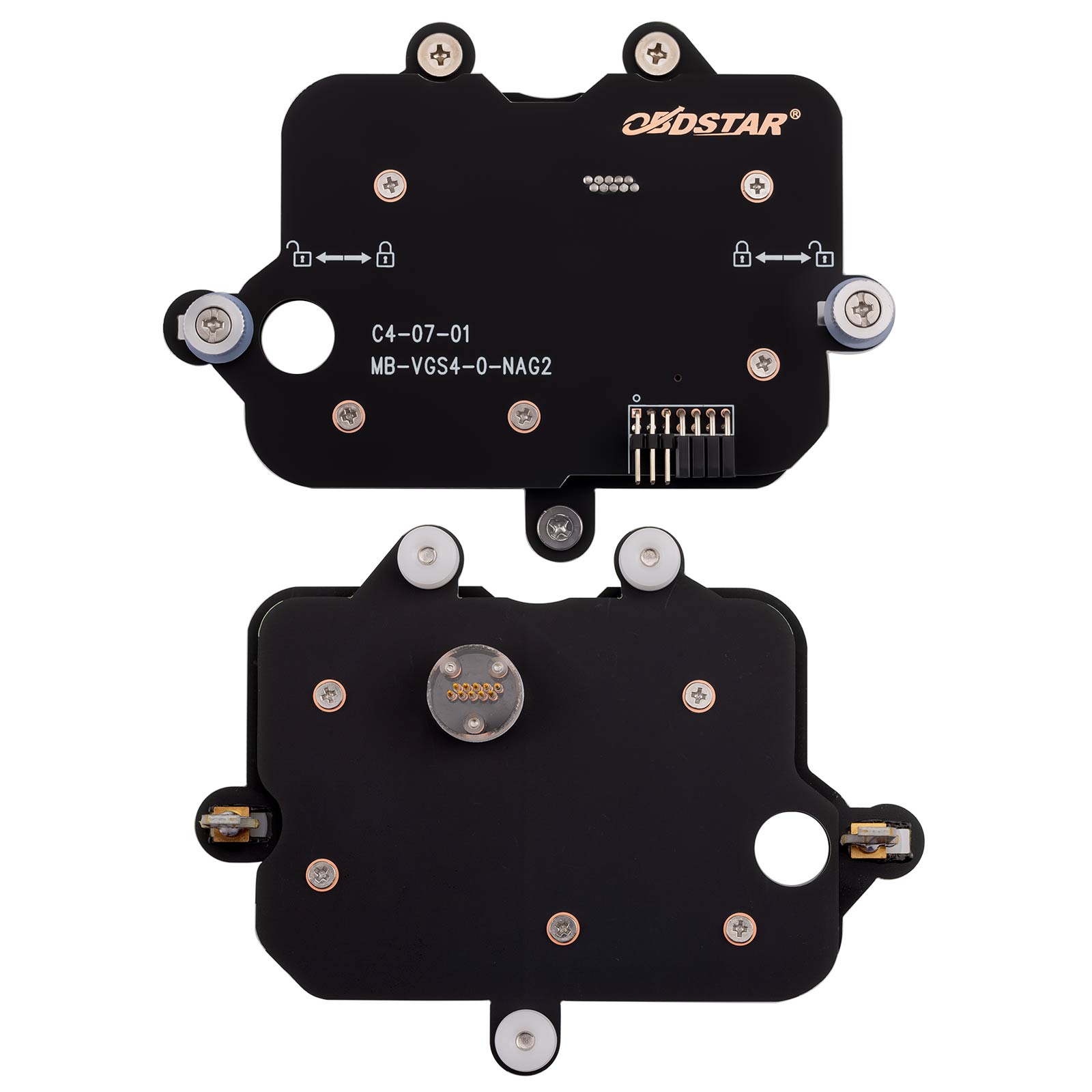

1pc x C4-07-01 soldering-free board

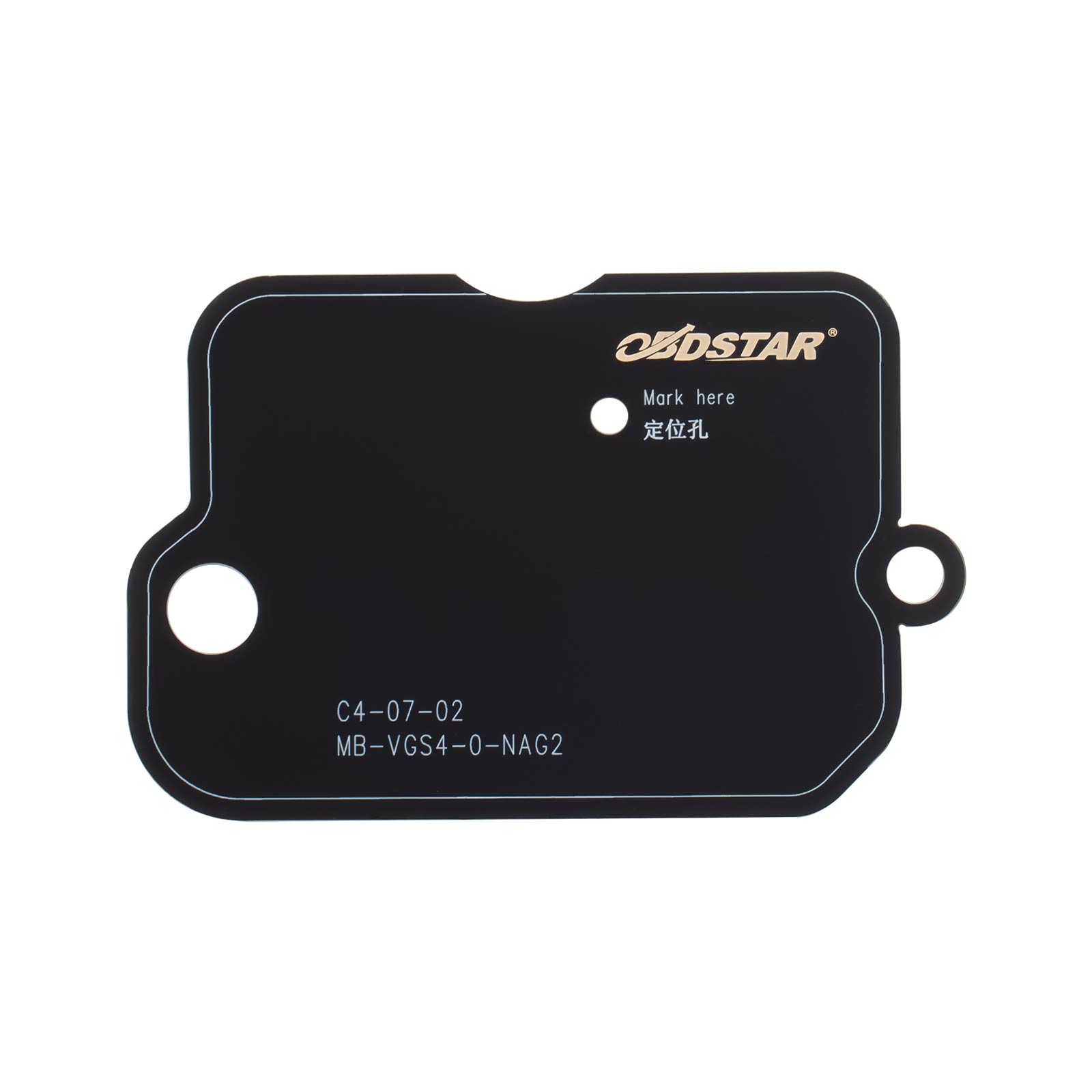

1pc x C4-07-02 custom positioning board

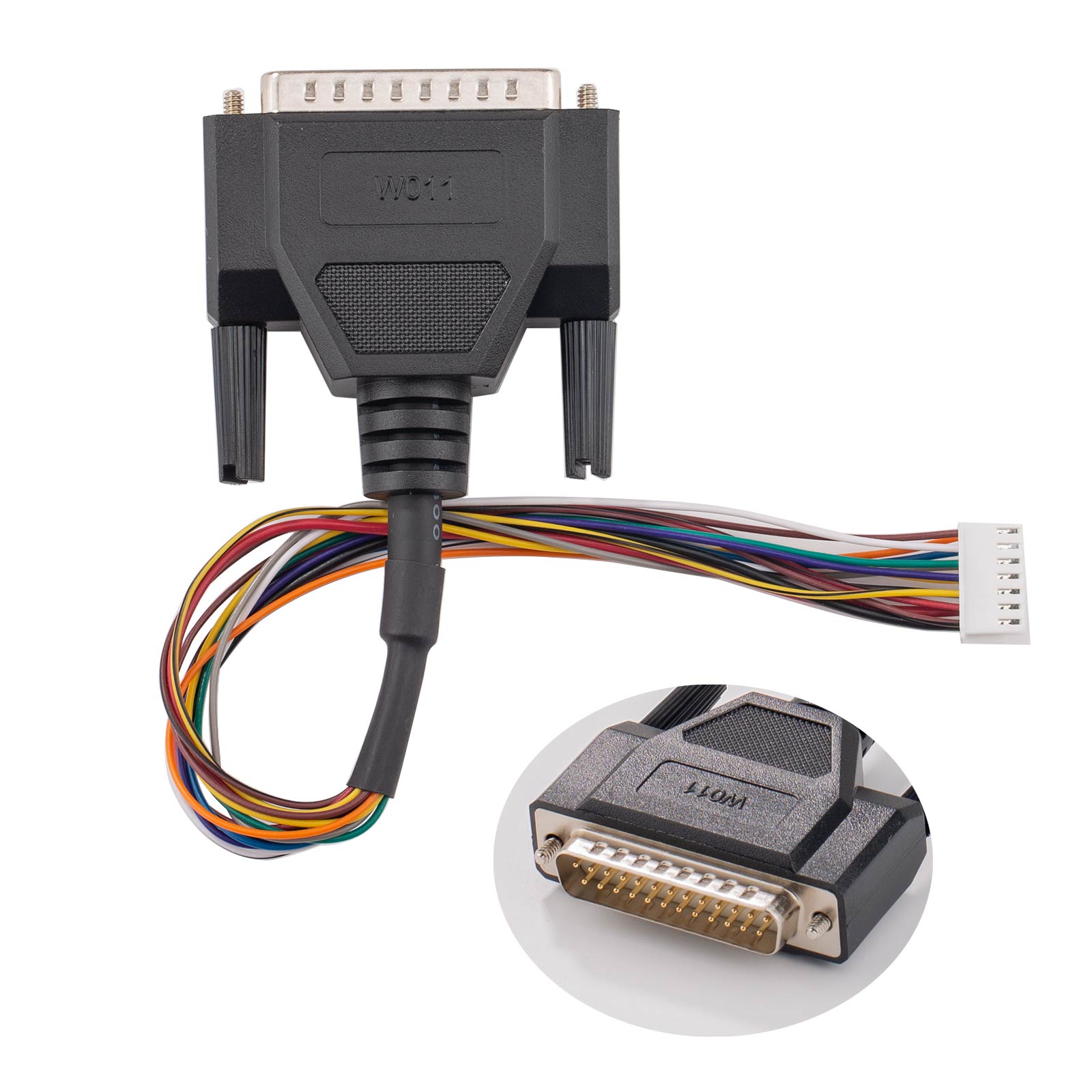

1pc x W011 cable

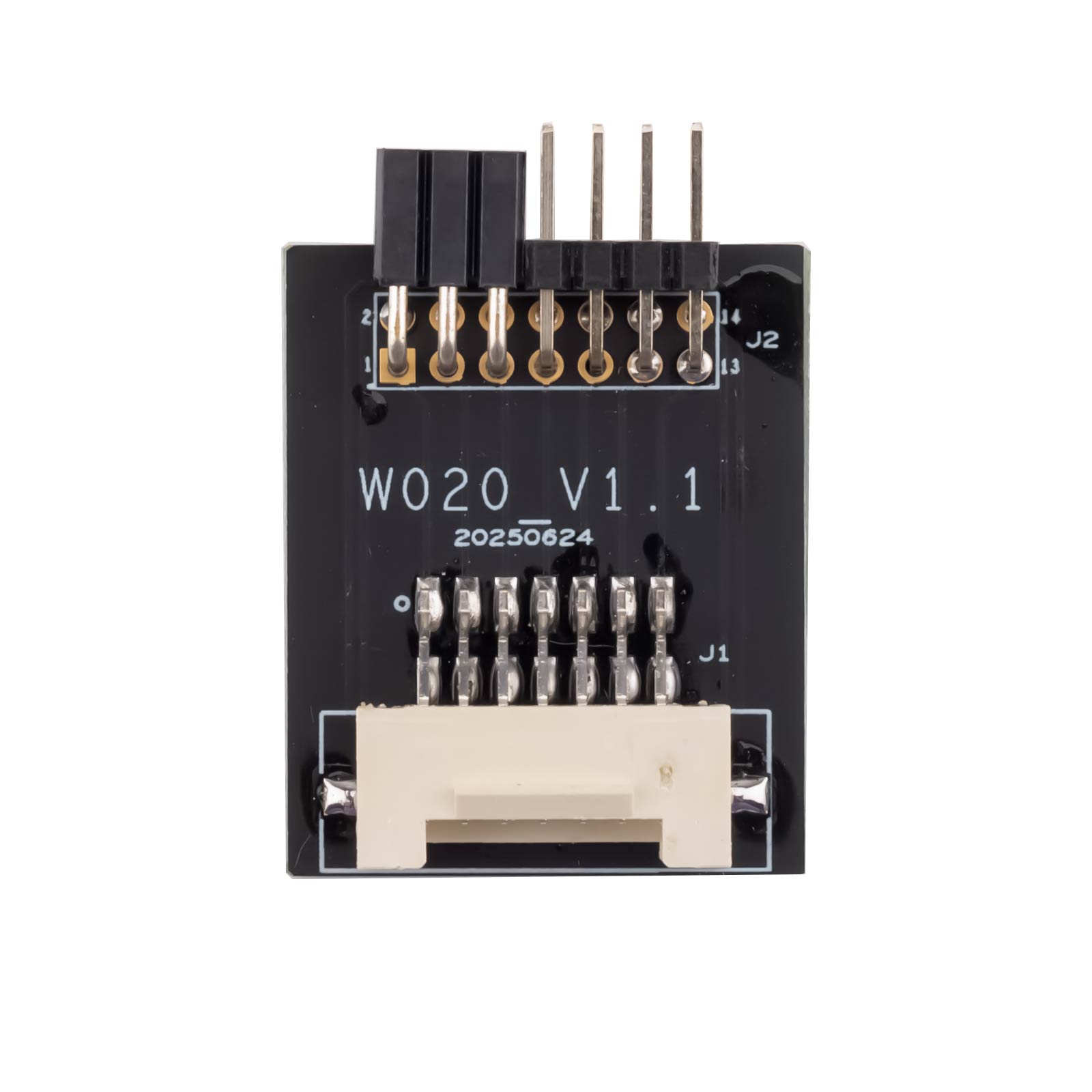

1pc x W020-V1.1 interface board

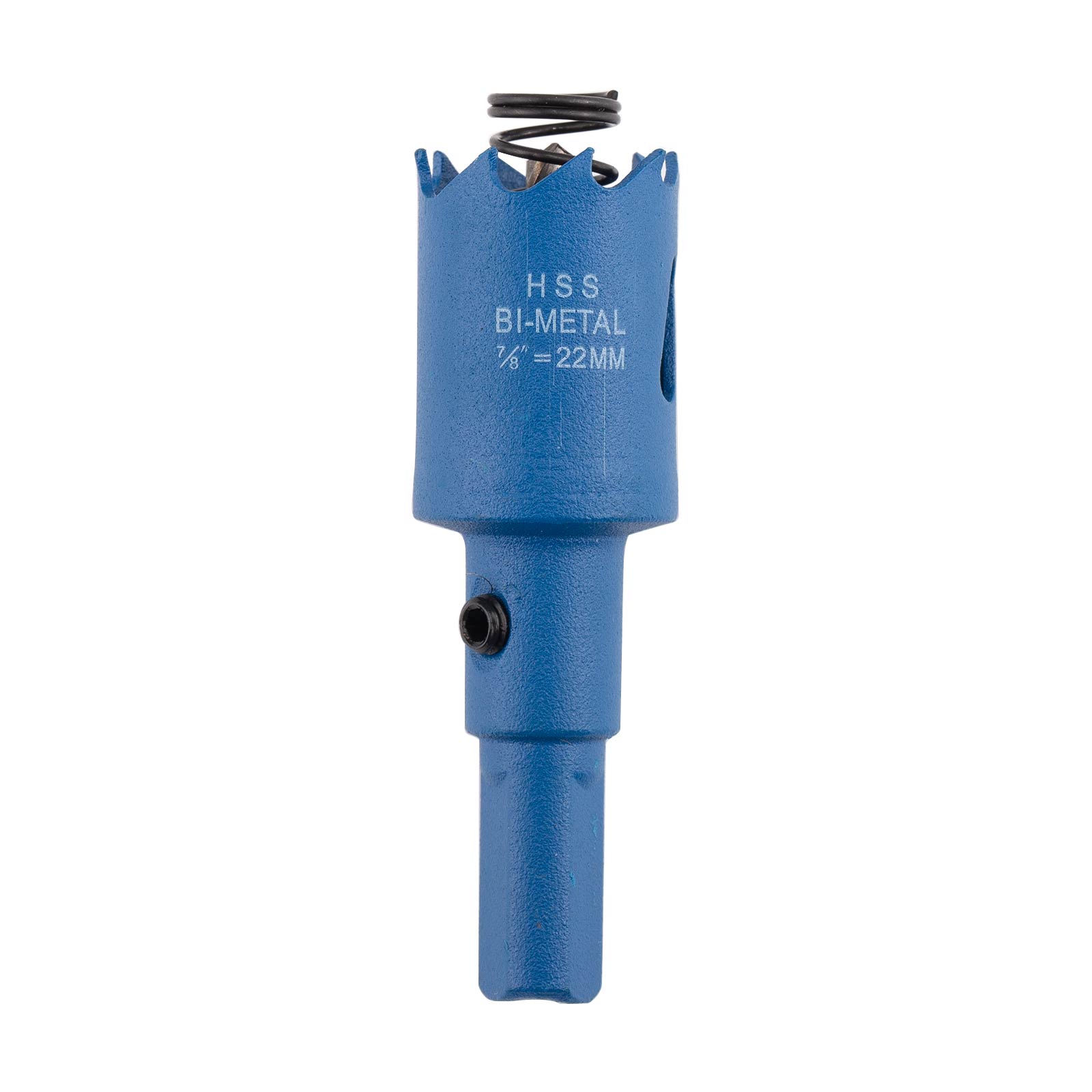

1pc x 22mm custom drill head

1pc x TCM-012 cable

1pc x Converter V2
