GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
Achat immédiat: €41
Livraison:
Livraison gratuite
Poste Ordinaire ServiceDélai de livraison estimé: 12-25 jours de travail. Détails »
Poids:
0.2KG
Paquet:
14.5cm*10.5cm*4.3cm
( Inch: 5.69*4.12*1.69 )
Résultats:
Retour de remboursement dans 30 jours, l'acheteur paie les frais de retour. Lire les Détails »
Fichiers de téléchargement associés
Description du produit

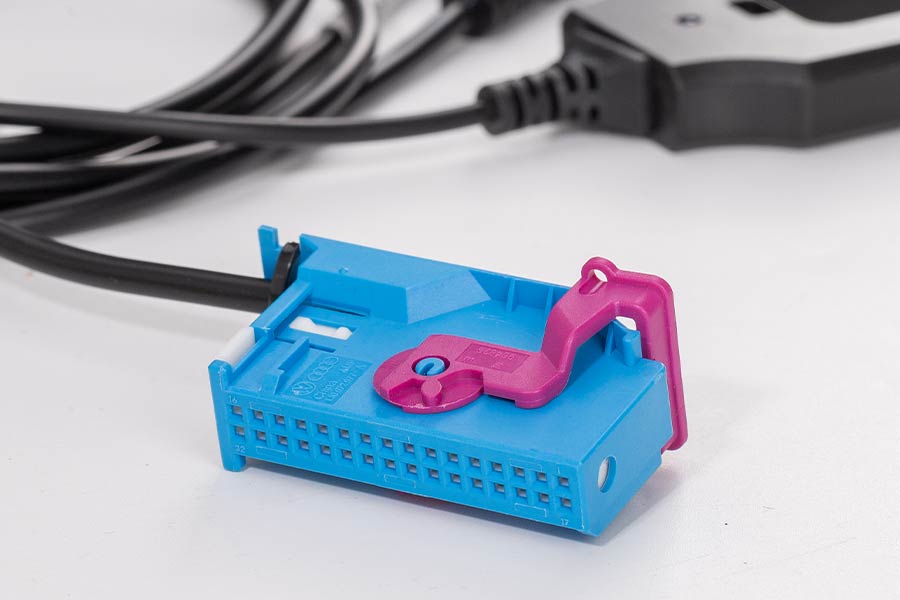

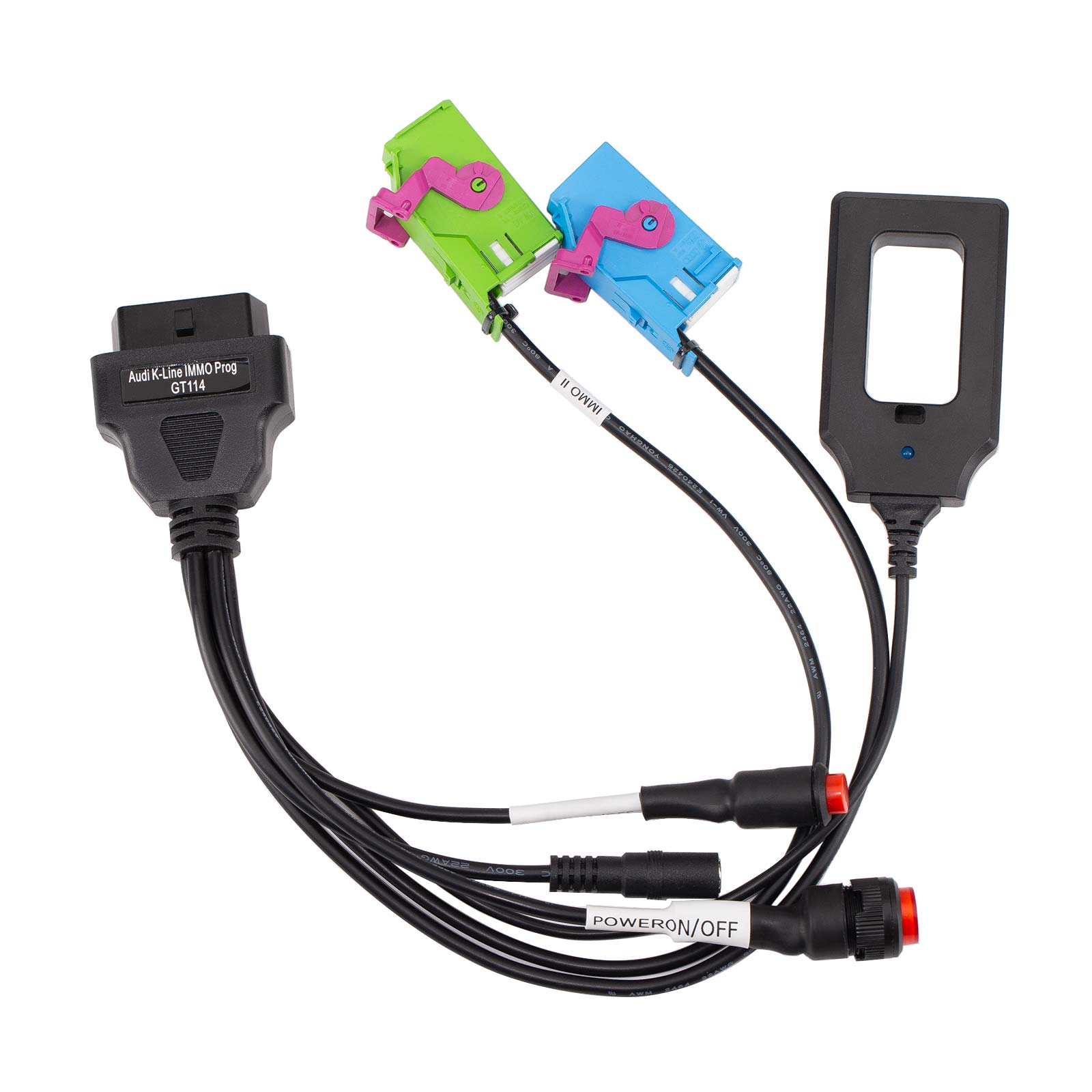

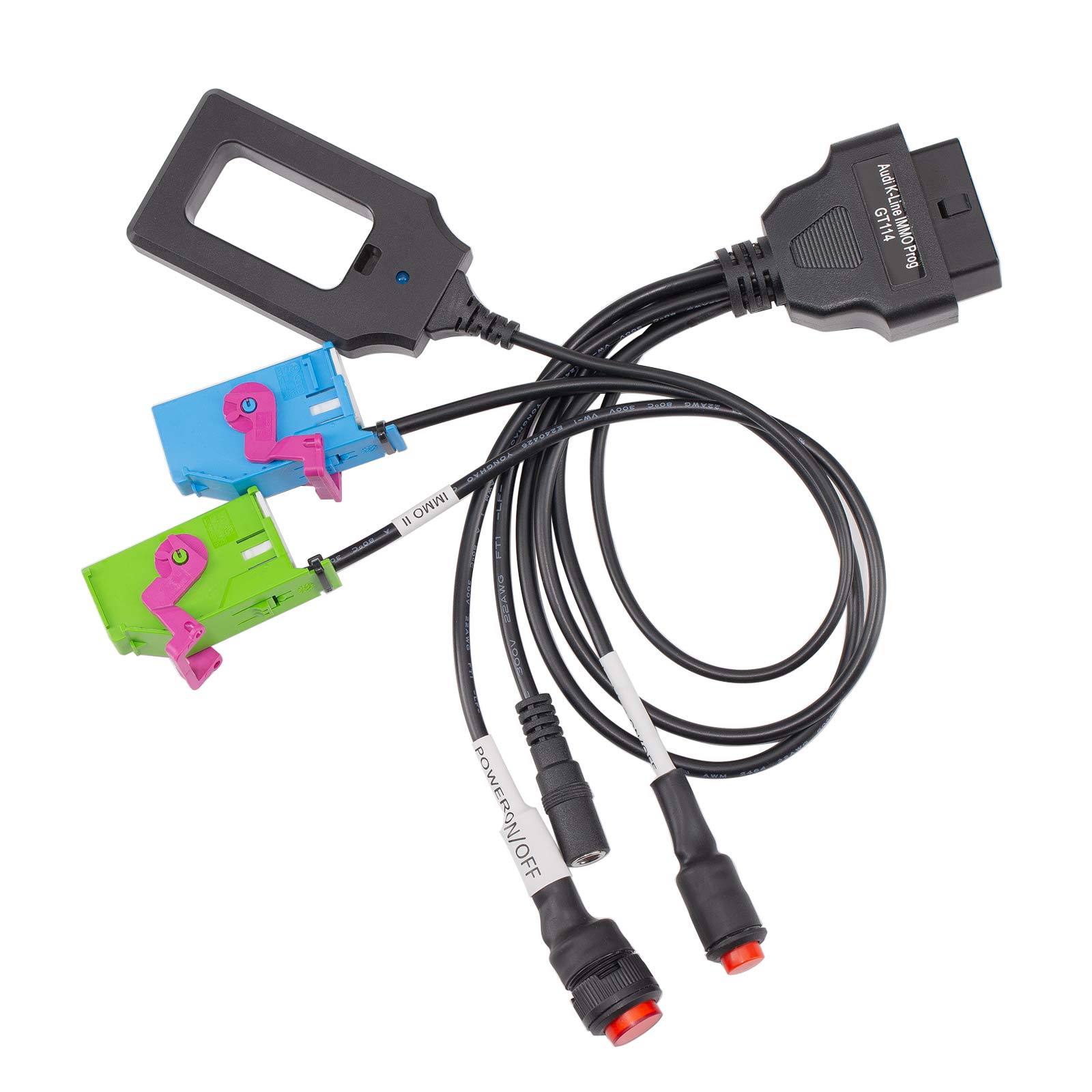

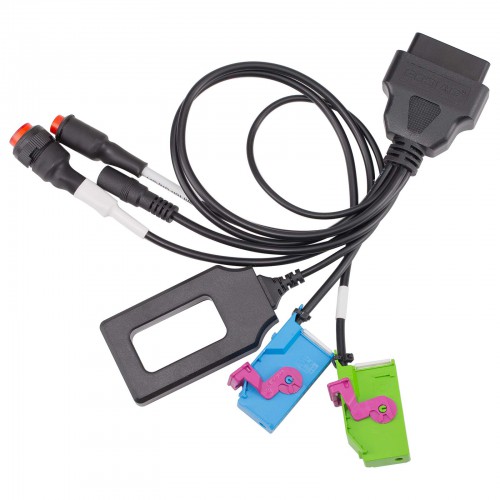

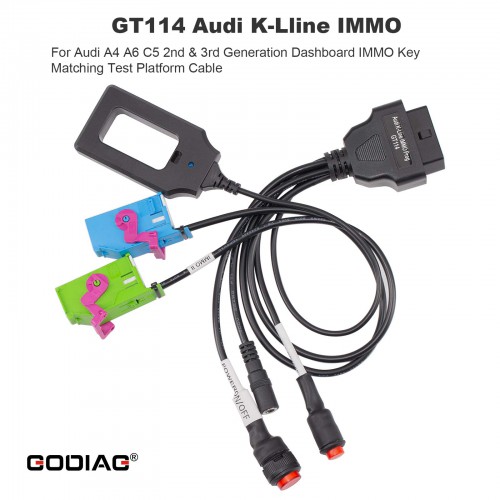

GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform CableGODIAG GT114 Audi K-Lline IMMO cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, key matching... It supports Audi A6 C5 from 2000-2006.
GODIAG GT114 Audi K-Lline IMMO cable can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER VAG, AUTEL, etc.

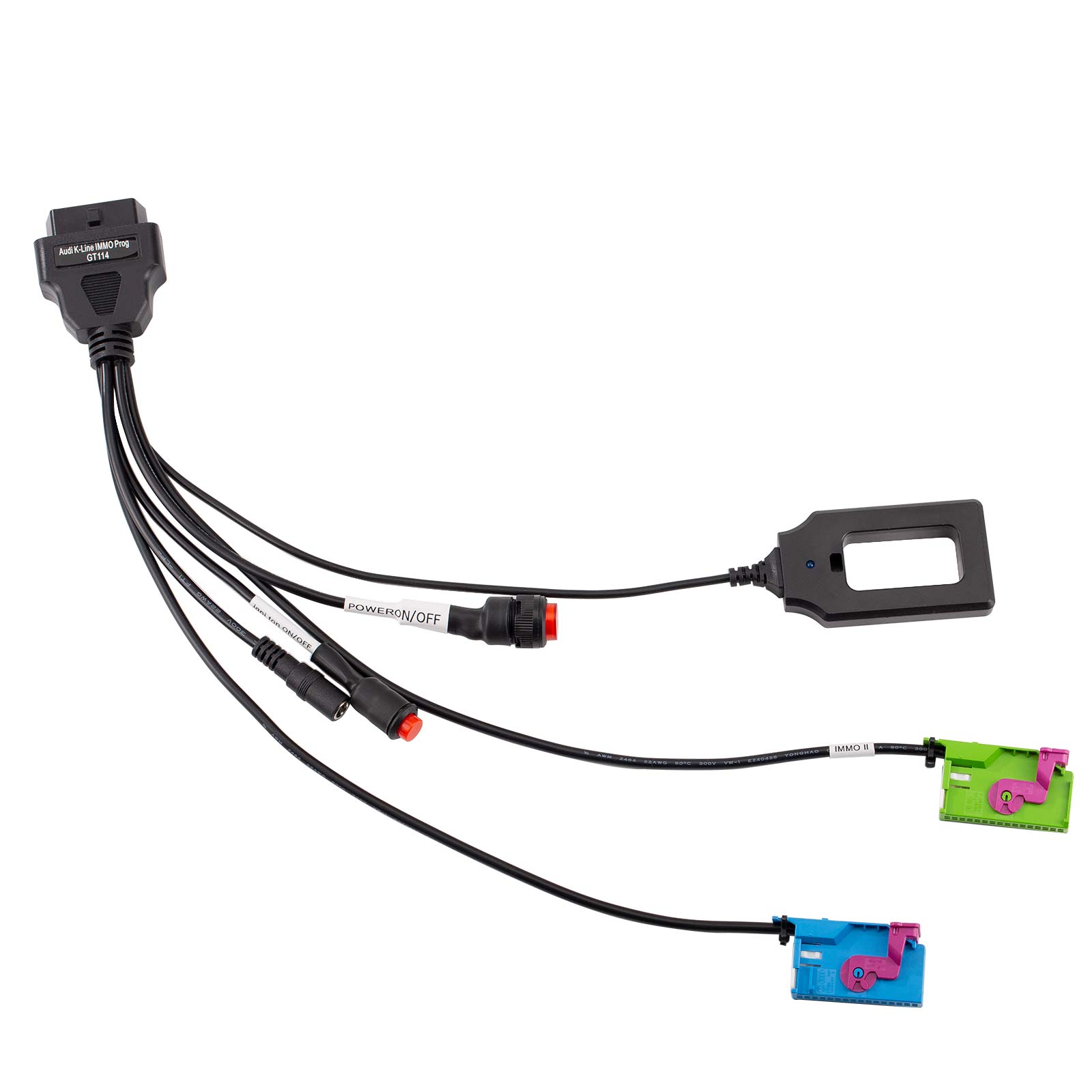

Product Features:

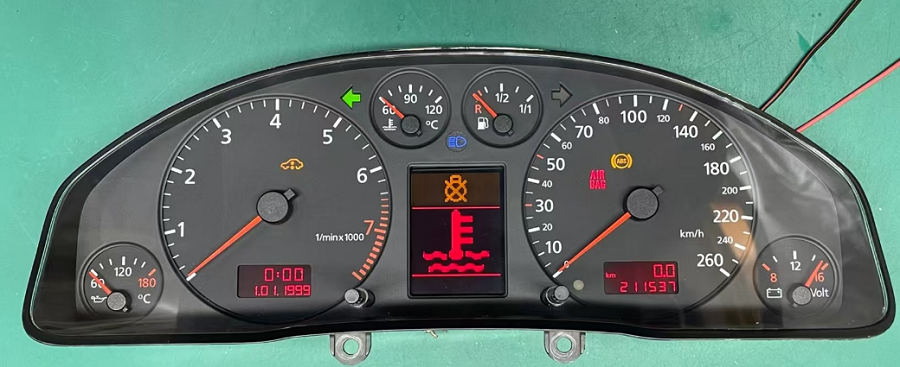

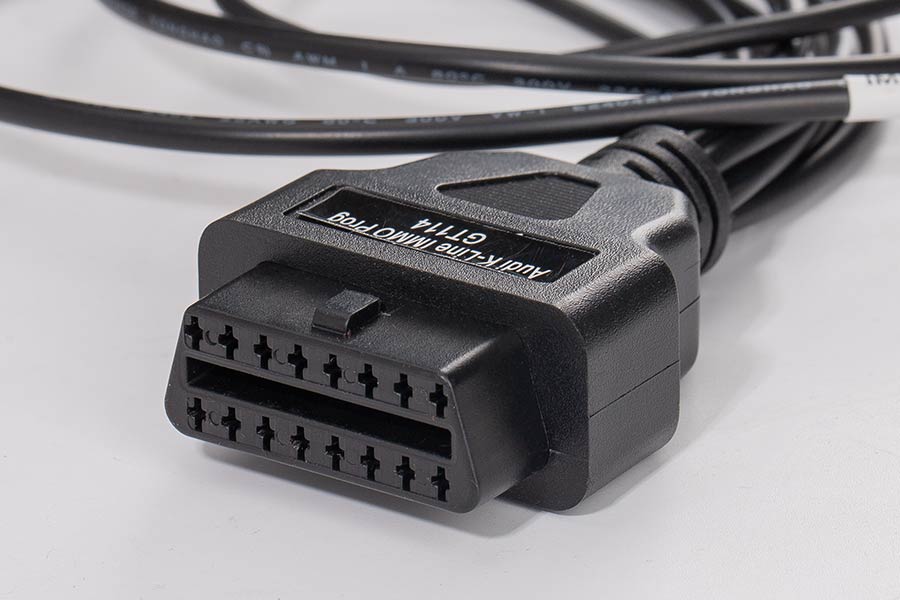

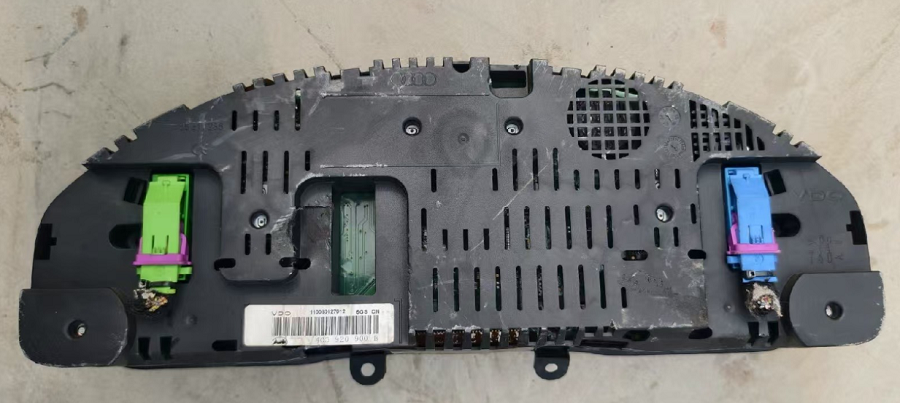

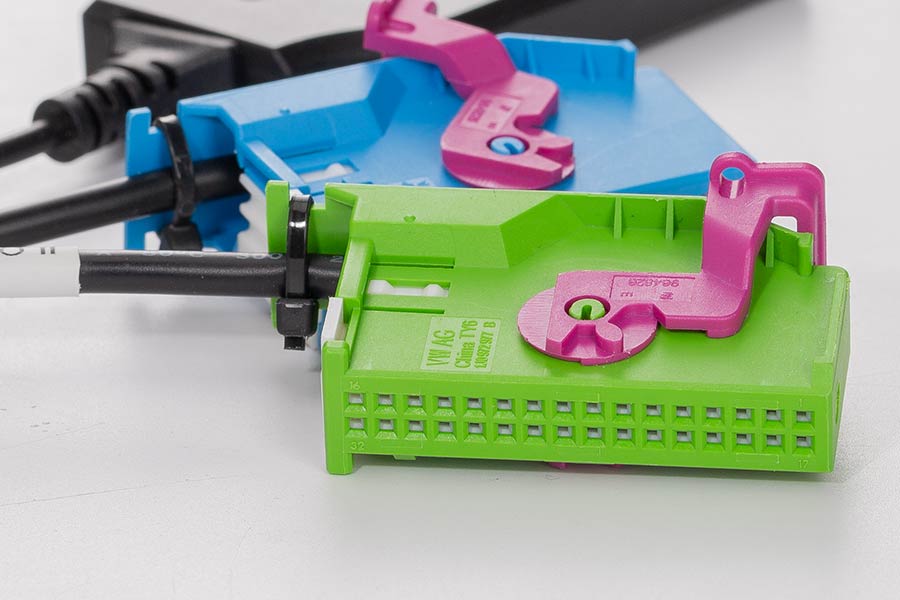

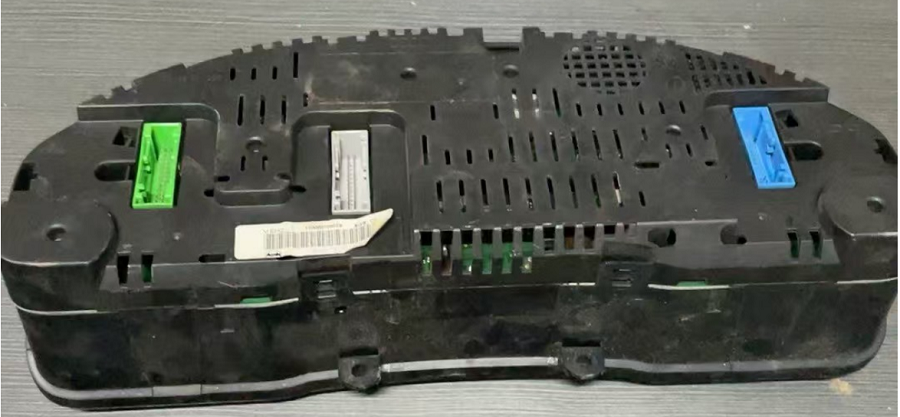

1. Offline connection to the dashboard to convert to standard OBD2.
2. Perform key chip and instrument synchronization test.

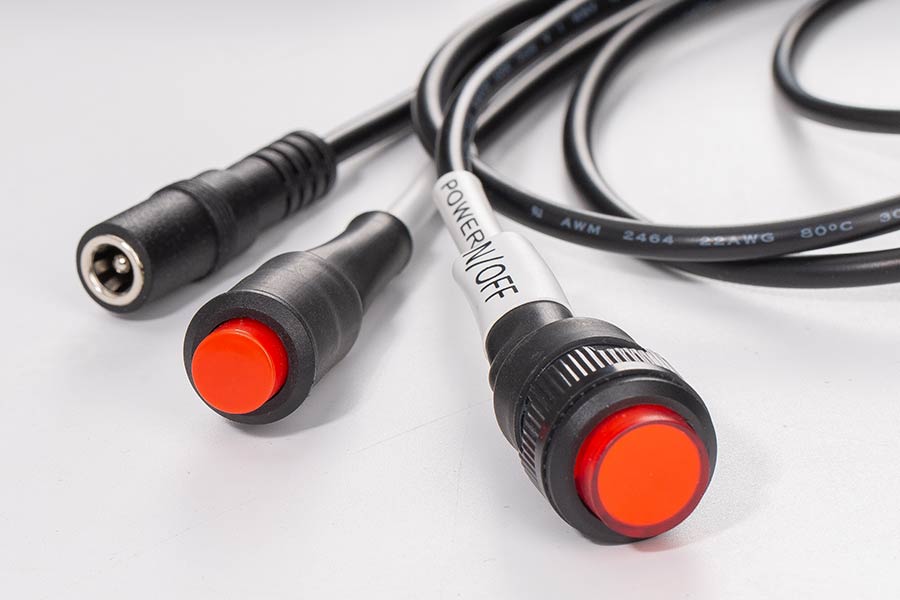

3. Independent power switch
3. Independent power switch
4. Independent ignition switch
5. Key induction adapter with light
Tips for Audi A6 C5 Key Matching Process
1. The key matching requires a Megamos ID 48 key [the Xhorse super chip cannot be matched successfully], and the generated IMMO instrument data must be written back, and matching learning is required.
2. After reading the data, remember the PIN code, because the PIN code will be needed in the subsequent matching process. The learning process requires a clear ignition signal, and the matching will not be successful if the operation is wrong. The matching process must follow the prompts, such as waiting for 5 seconds and waiting for 2 seconds.
Intelligent IMMO System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.

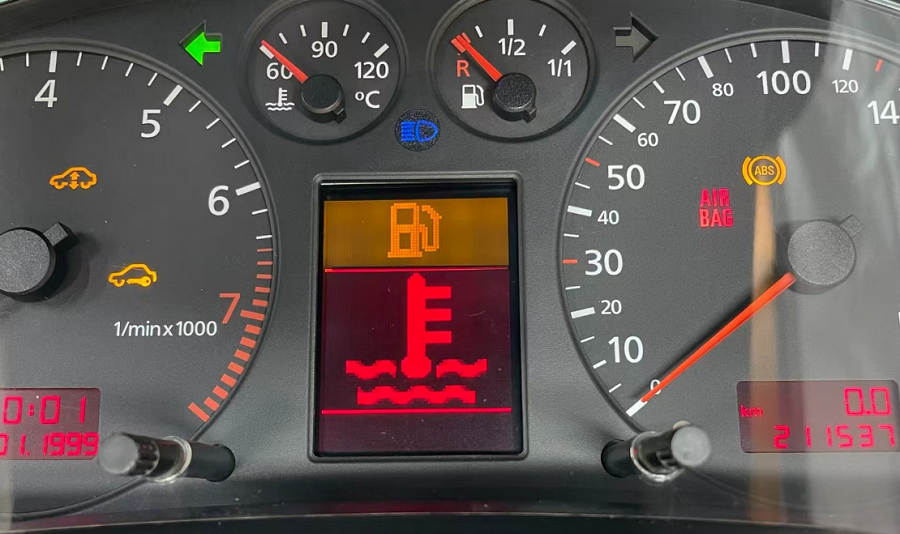

Car IMMO Start and Start Key Chip Detection
Test Result Analysis:
1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

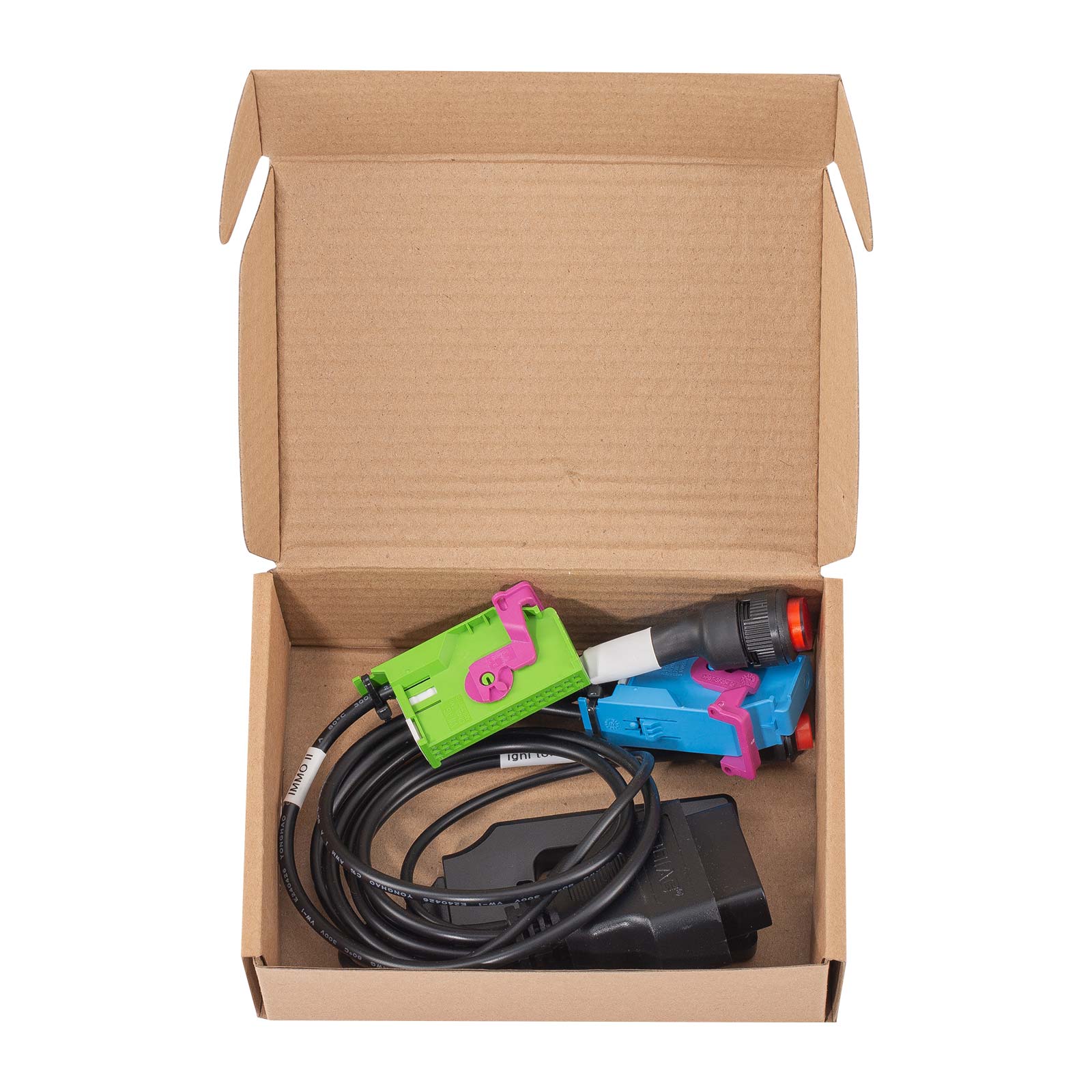

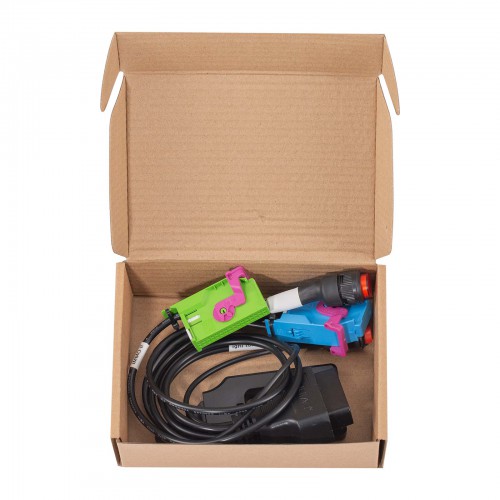

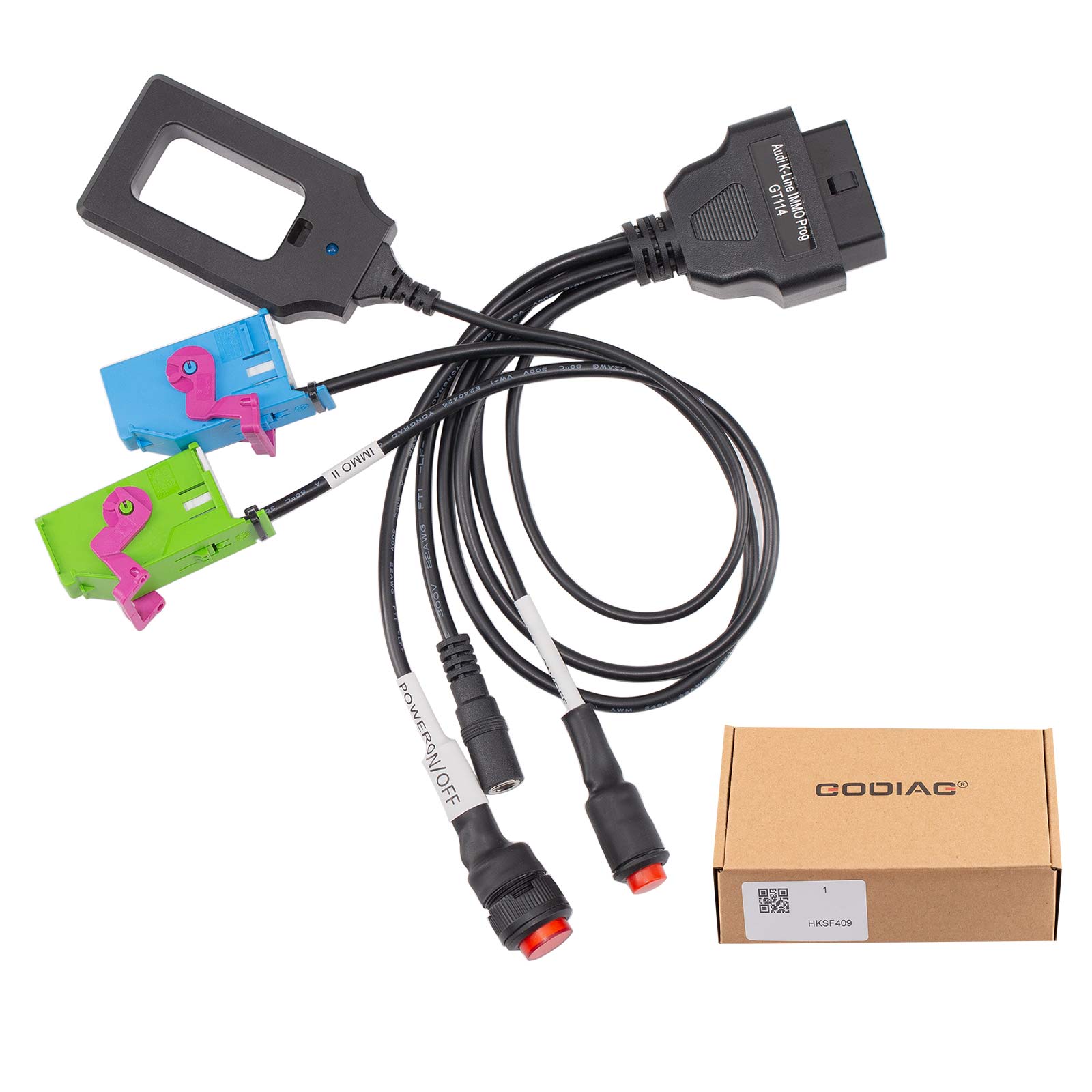

Package:
1pc x GODIAG GT114 Audi K-Lline IMMO for Audi A4 A6 C5 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
