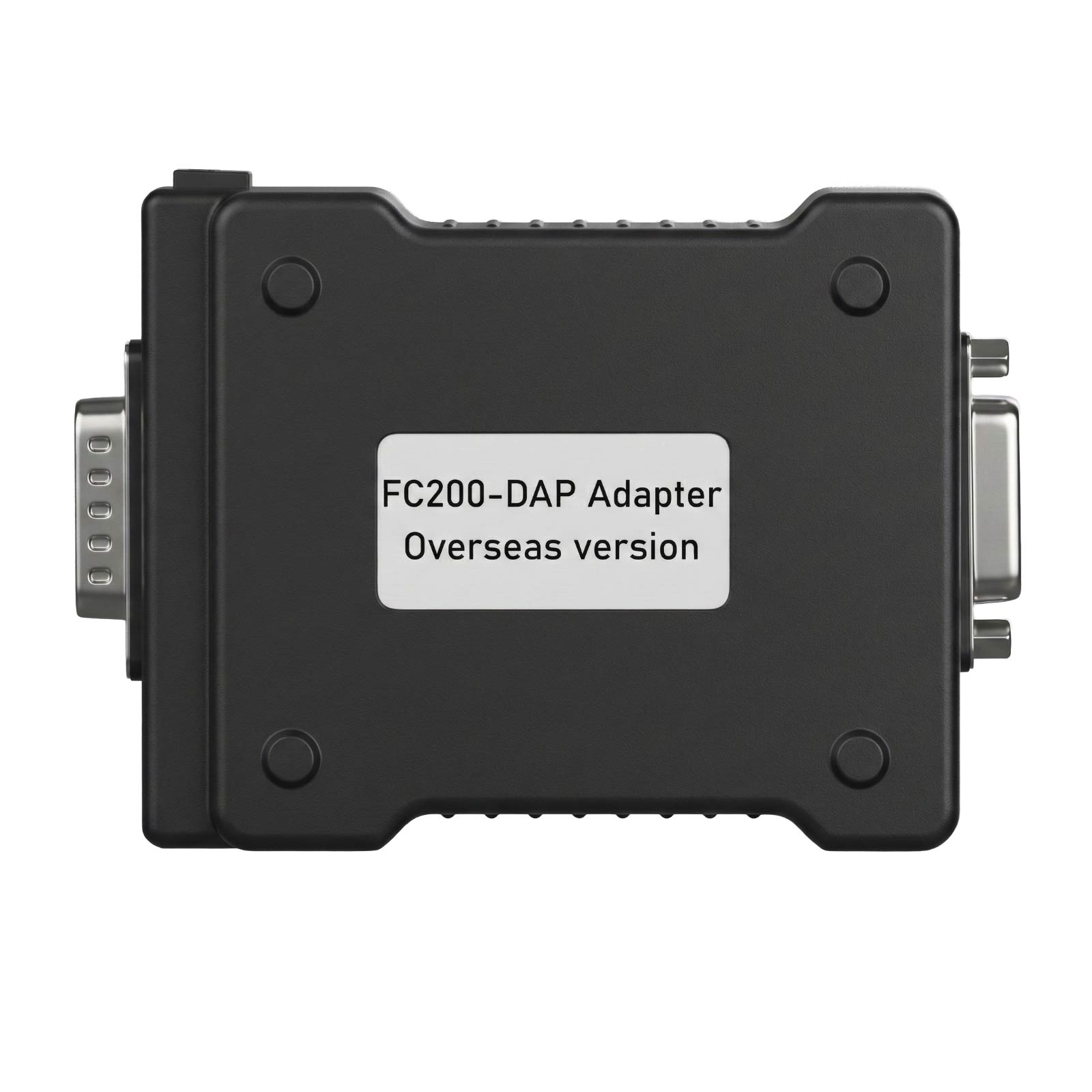

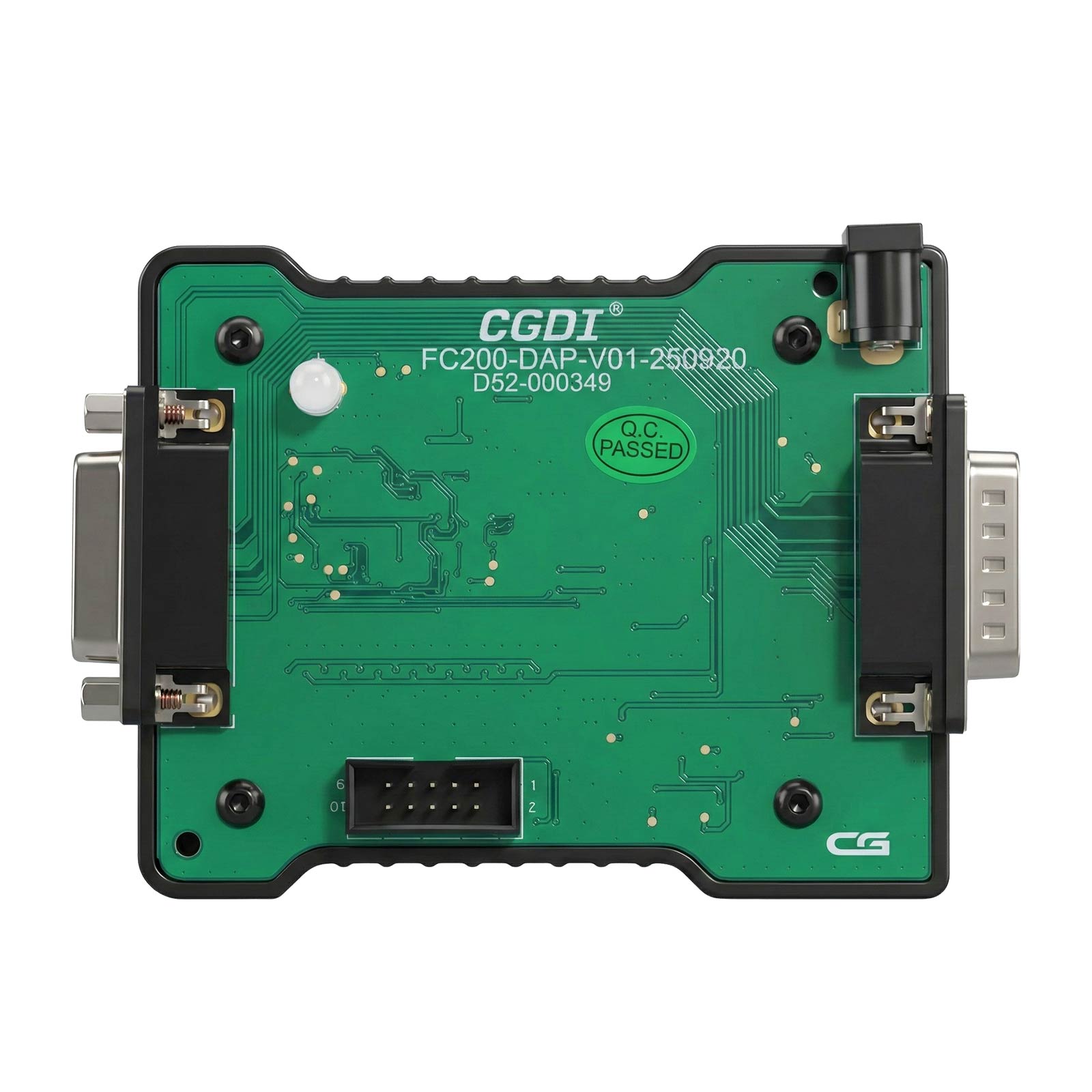

CGDI FC200 DAP Adapter Mainly For Toyota First-generation DENSO Series, For Delphi DCM7.1AP & DCM7.24 Chips

1. DAP Function: Primarily for reading and writing ECUs with TC2xx (Infineon) chips, only supports boot (opening cover) mode.



Main Models:


DCM7.1AP—Chinese cars, Hyundai, Kia, and Indian market models (Tata, Mahindra, Isuzu, etc.), can read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.



DCM7.24—Chinese Yuchai



Note: Adding ECUs for other models or ECUs with chips like TC297 is possible, but it's best to have the customer provide the ECU.



Precautions: ① The correct vehicle model must be selected for operation; ② Diesel engines require a stable 12V power supply.



2. Toyota/Lexus ECU (first generation, early 2000s) NEC76F00xx chip Boot mode read/write, supports the following 8 chip types:



76F0038GD

76F0038AGD

76F0039GD

76F0039AGD

76F0040GD

76F0040AGD

76F0070

76F0085

Important Note:

Since Denso ECU housings come in many different versions, you must verify the chip model when using this function. If the chip is among the eight chips supported by the device, you can use the DAP adapter without needing to check the ECU cover model; only check if the chip matches. The model number on the FC200 menu corresponds to the silkscreened model number on the PCB board after opening the ECU cover. Select the corresponding wiring diagram from the menu based on this silkscreened model number.

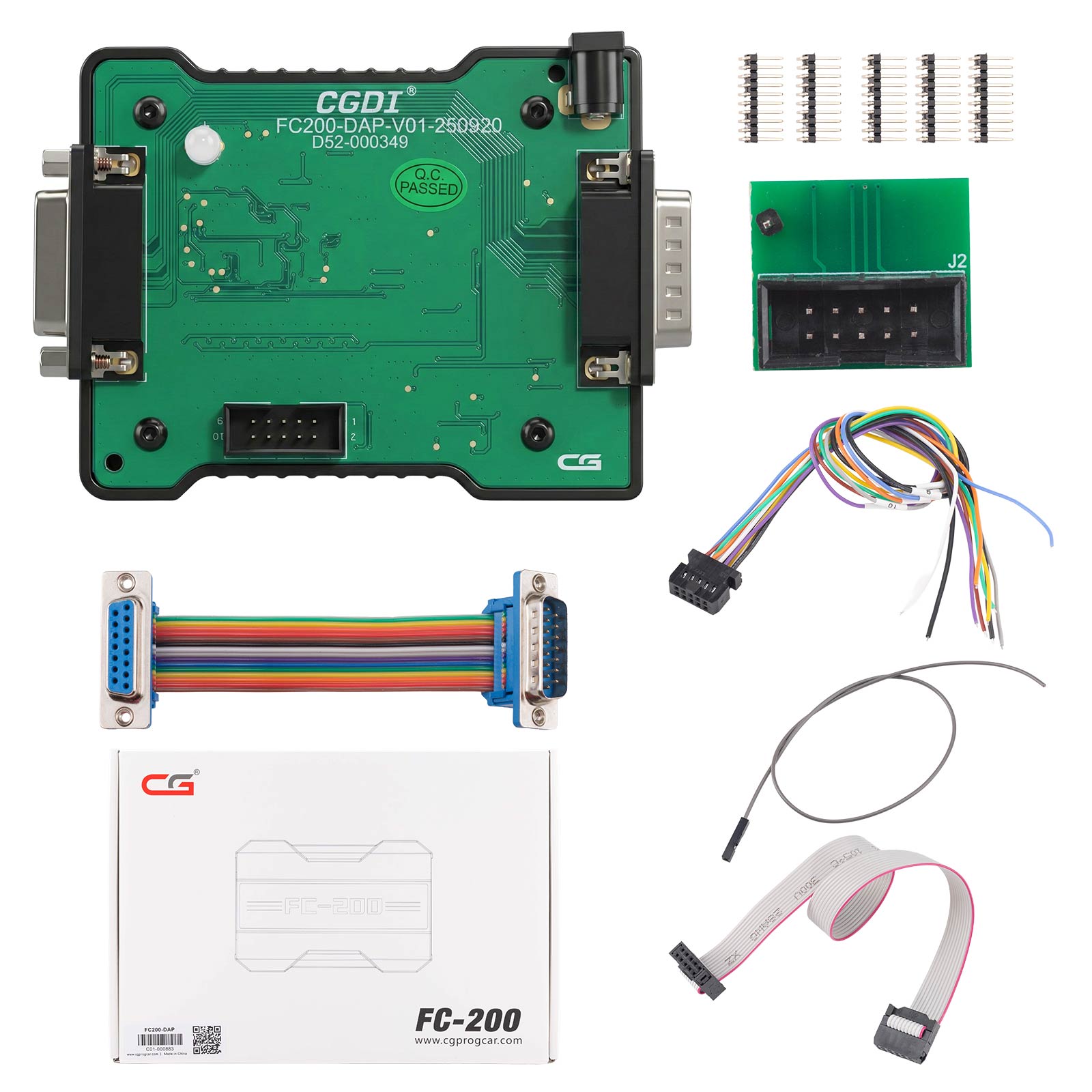

1pc x Pin header

1pc x Gray ribbon cable connector

1pc x FC200-DAP cable

1pc x 76F adapter board

1pc x DB15 two-row male-female connector

1pc x DIDC ribbon cable extension cable
