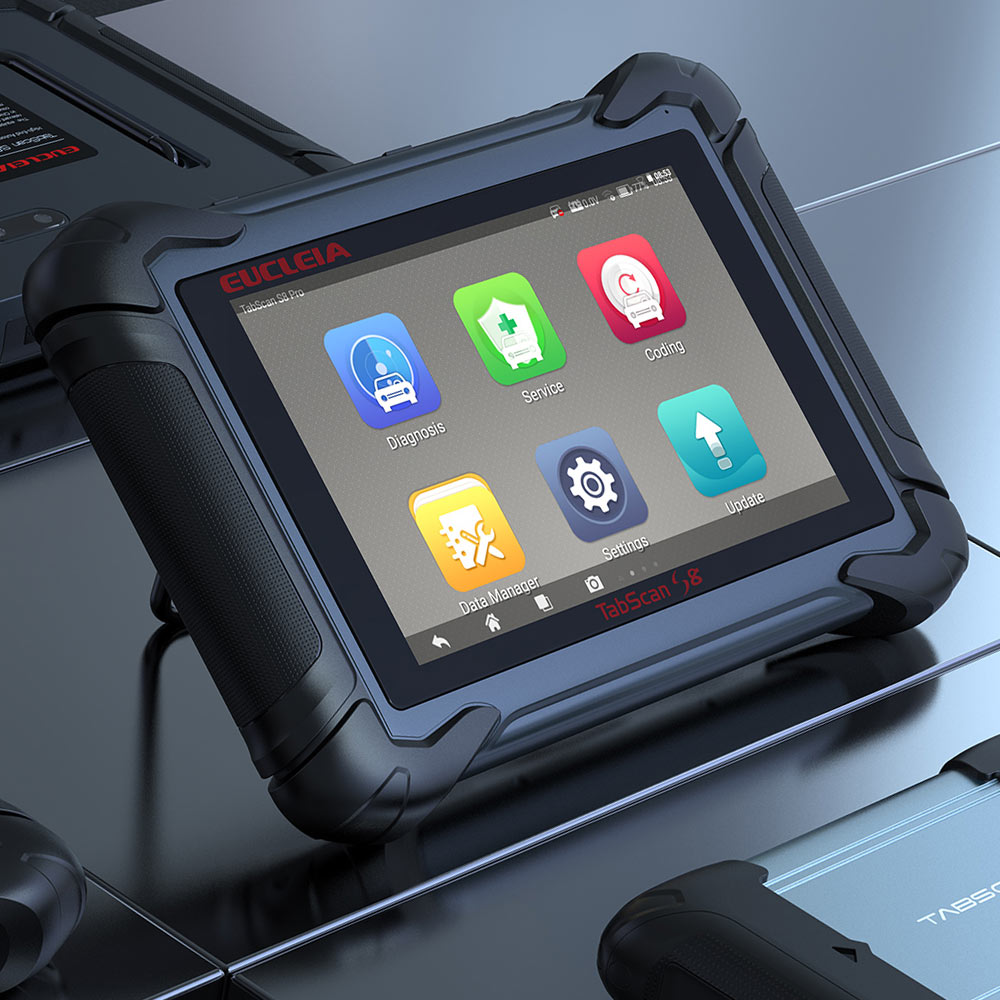

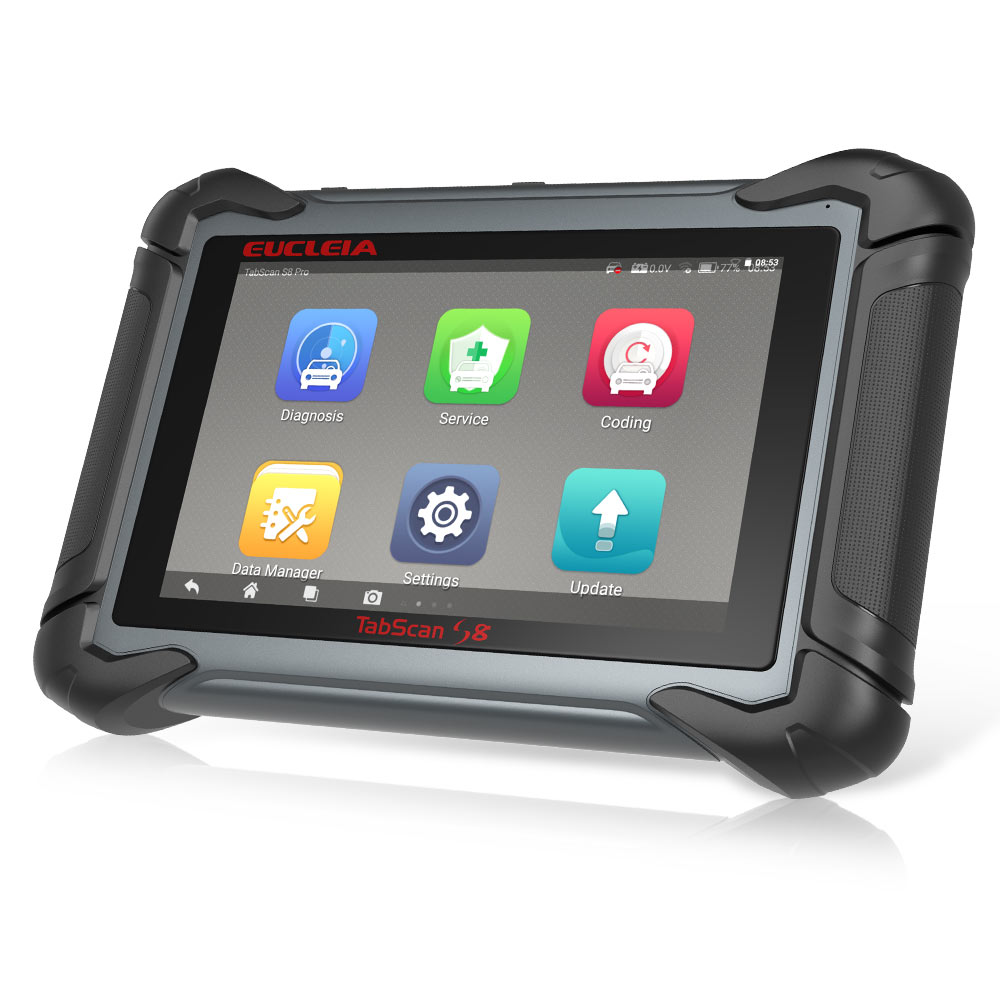

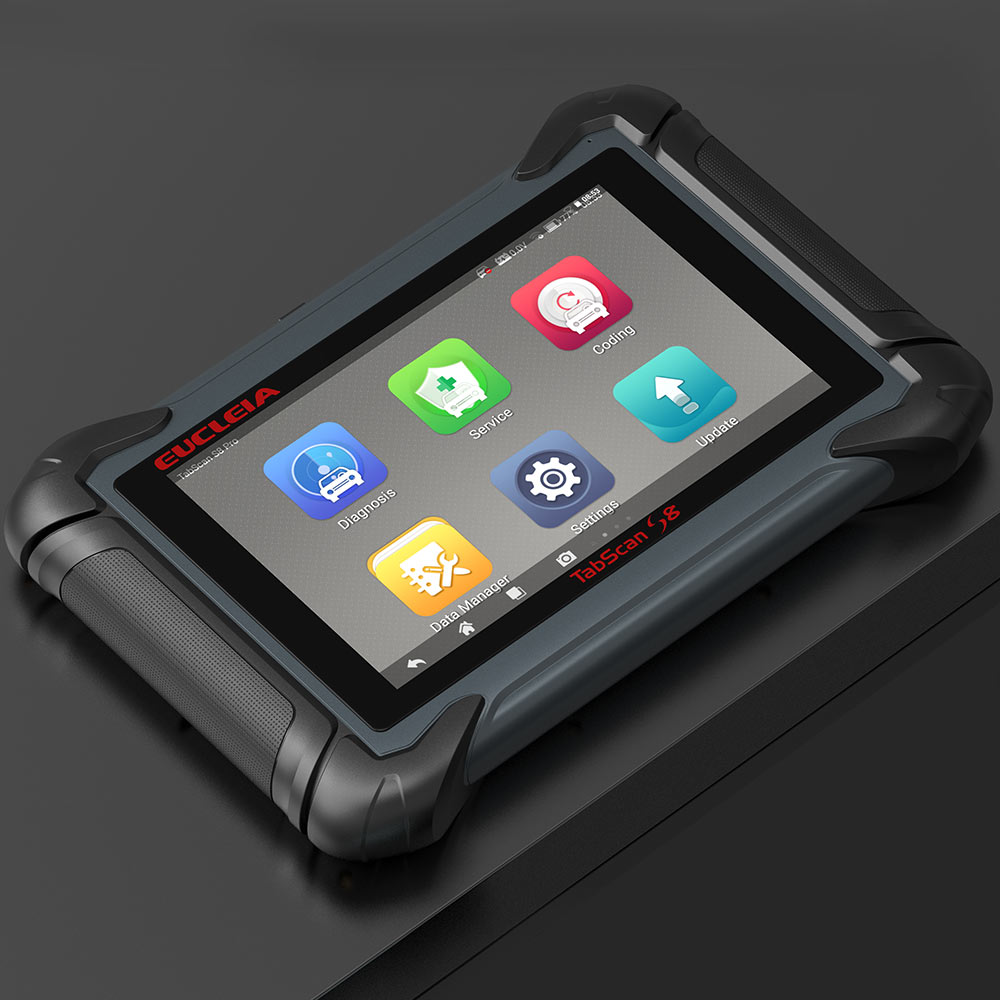

EUCLEIA TabScan S8 Pro Automotive Intelligent Dual-mode Diagnostic System

En stock. Numéro d'article: No.SP352

Achat immédiat: 2,310
Livraison:
Livraison gratuite Livraison Express Service    Délai de livraison estimé: 6-10 jours de travail. Détails »
Poids:
5.0KG
Résultats:
Retour de remboursement dans 7 jours, l'acheteur paie les frais de retour. Lire les Détails »

Description du produit

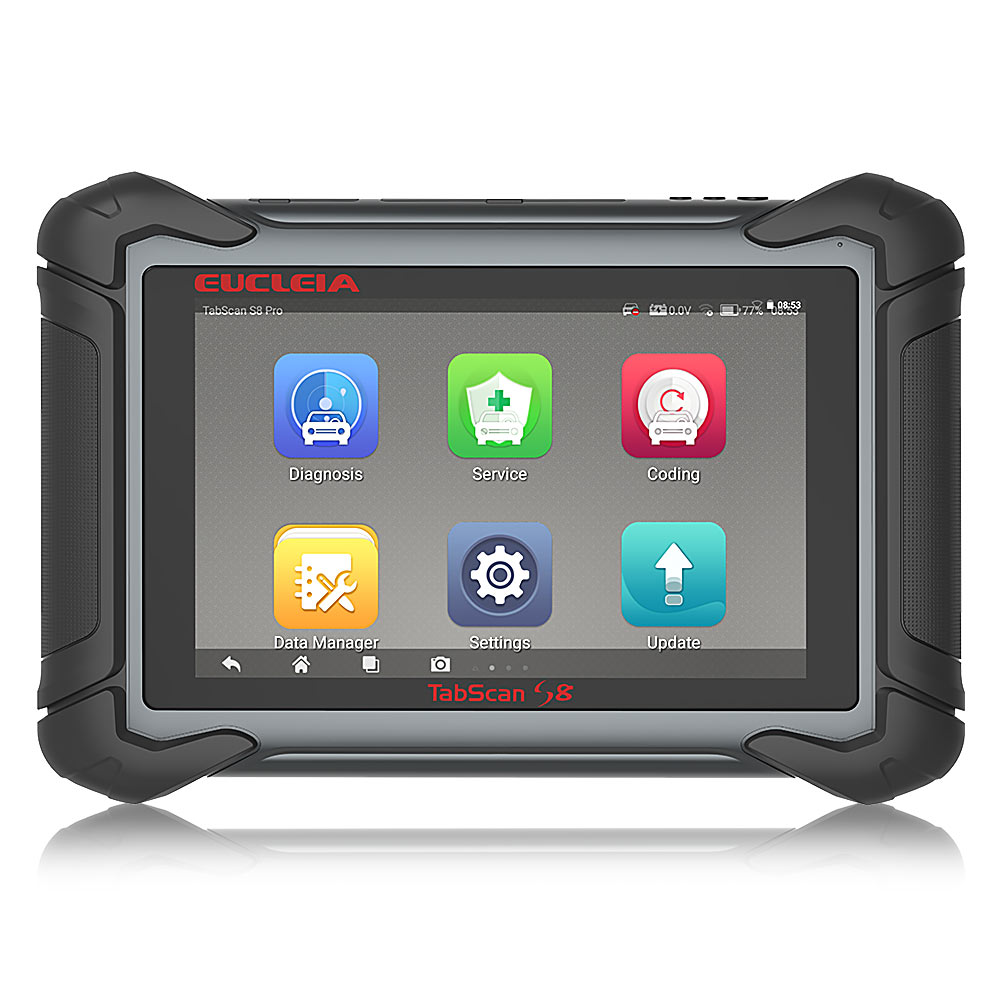

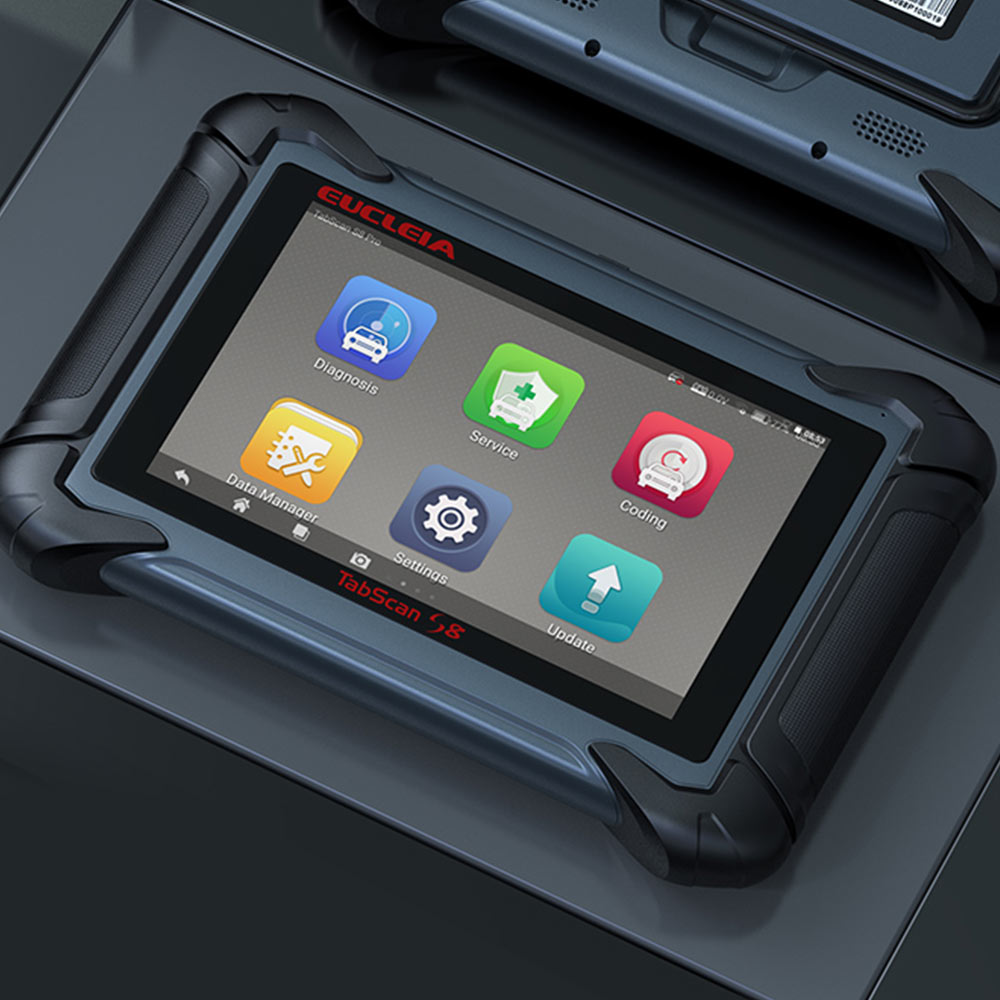

Tabscan S8 Pro is the latest model from Eucleia, also it has the most powerful features among all the tabscan series. With dual mode diagnositc feature, S8 Pro can achieve general diagnostic and original factory diagnostic.

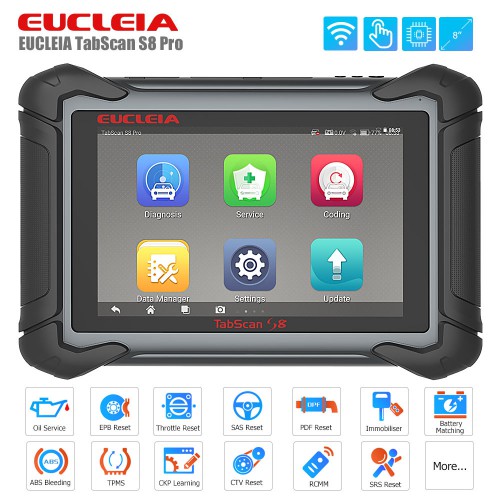

EUCLEIA TabScan S8 Pro Automotive Intelligent Dual-mode Diagnostic System

Now S8 Pro supports pathfinder and piwis 3 officially, which means it can support the original diagnostic feature for Porsche Gen 3 and new Landrover. It can also support online programming, customer need have online account.

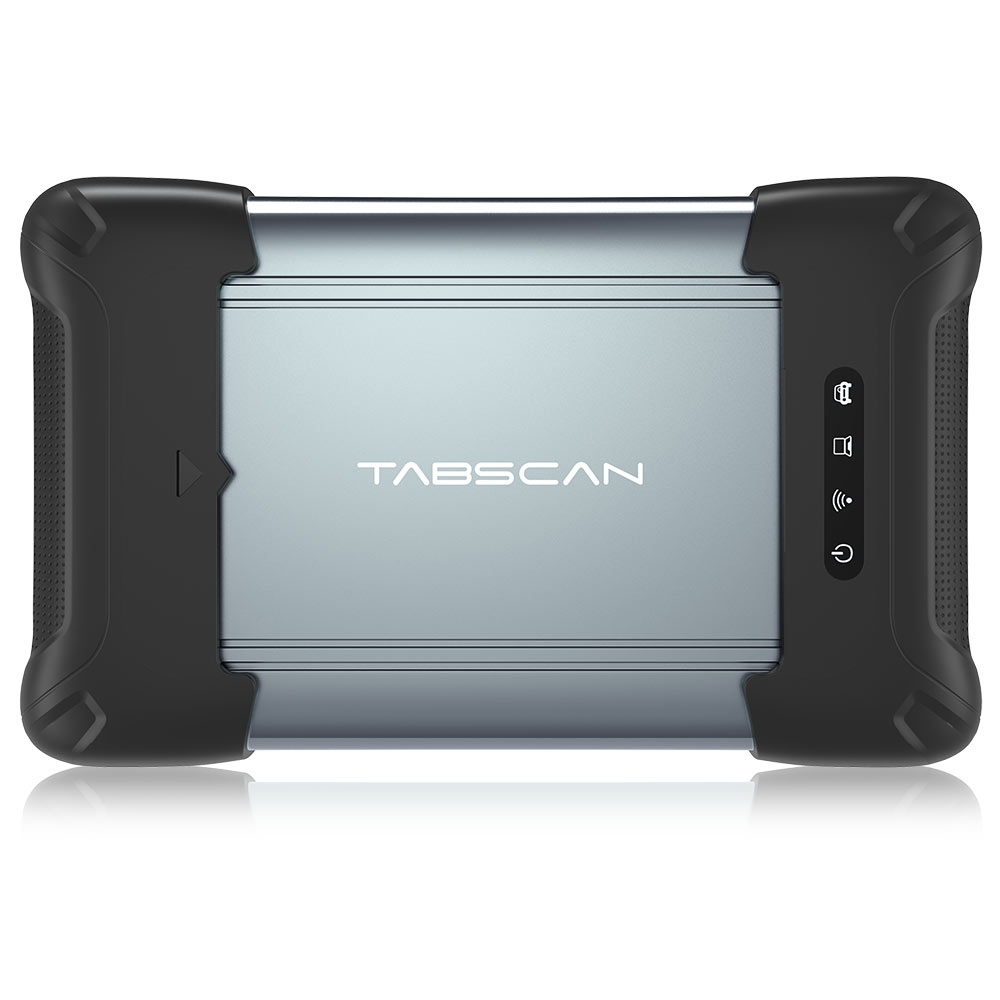

With T6 Pro device which supports DOIP protocol with most of  the newest and original manufacturer diagnostic functions.
Support new Land Rover, Porsche 3rd generation original software
Free upgrade for 18 months
Language: Russian, English, French, German, Polish, Portuguese, Swedish, Japanese, Korean, Arabic, Burmese

S8 Pro supports the following original softwares:

Brand Models Software
TOYOTA TOYOTA, LEXUS, SCION GTS
HONDA HONDA、ACURA i-HDS
VOLVO VOLVO VIDA
VW VW、Audi、Seat、Skoda、Bentley、Lamborghini ODIS, ODISE
JLR Jaguar、Landrover Pathfinder, SDD
Ford Ford Forscan
MAZDA MAZDA Forscan
GM GM GDS2DPS
Mercedes Smart, Maybach, Benz, Sprinter  Xentry DTS Vediamo
BMW BMW,Mini ISTAD Esys ISTAP Winkwp
Porsche Porsche Gen 3 PIWIS3

EUCLEIA TabScan S8 Pro Feature:


Tabscan S8 Pro can support the following control unit diagnosis, which is including the following module diagnosis for example

1. Engine control module trouble codes reading and clearing
2. Transmission module trouble codes reading and clearing
3. Brakes trouble codes reading and clearing
4. Air conditioning trouble codes reading and clearing
5. Central electrics trouble codes reading and clearing
6. Radio tuner trouble codes reading and clearing
7. Parking assistance trouble codes reading and clearing
8. ABS trouble codes reading and clearing
9. SRS airbag trouble codes reading and clearing
10. Immobilizer trouble codes reading and clearing
11. Main body trouble codes reading and clearing
12. Navigation system trouble codes reading and clearing etc.

EUCLEIA Tabscan S8 Pro Supports Functions:

1. Action Test
2. Read and Clear DTC Codes
3. Display Live Data Stream in Graph
4. Read Freeze Frame
5. Read ECU information
6. Turn off MIL Warning Light

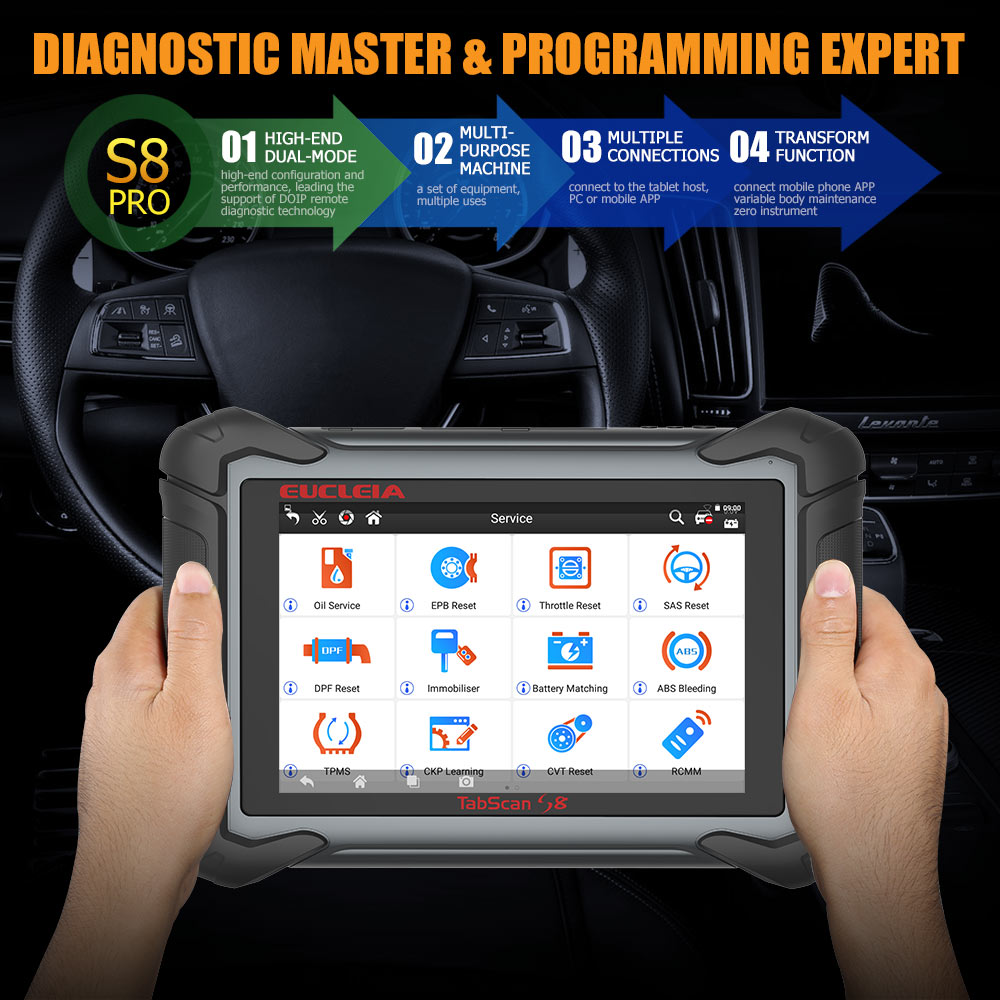

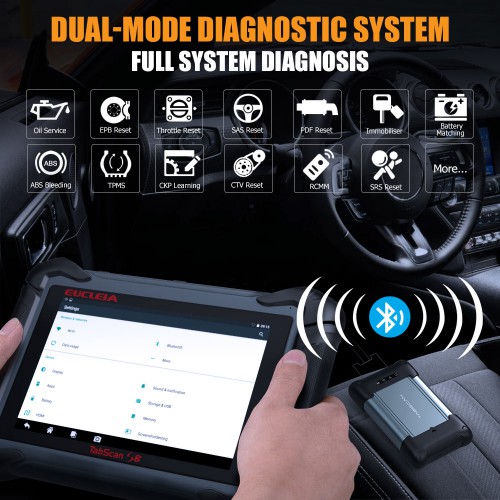

S8 Pro supports Hot function/Special function in dianostic category which is including

1. ABS Bleeding support
2. EPB Reset
3. Oil Service Reset
4. CKP Learning
5. Throttle Reset
6. SAS Reset
7. Immobilizer

S8 reads pin code from vehicle security immo system, mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. DPF Reset
9. Battery Matching
10. TPMS
11. CVT Reset
12. RCMM
13. SRS Reset

S8 Pro also supports hidden function activate for the following car brands:

1. Audi
2. Volkswagen
3. Skoda
4. Seat

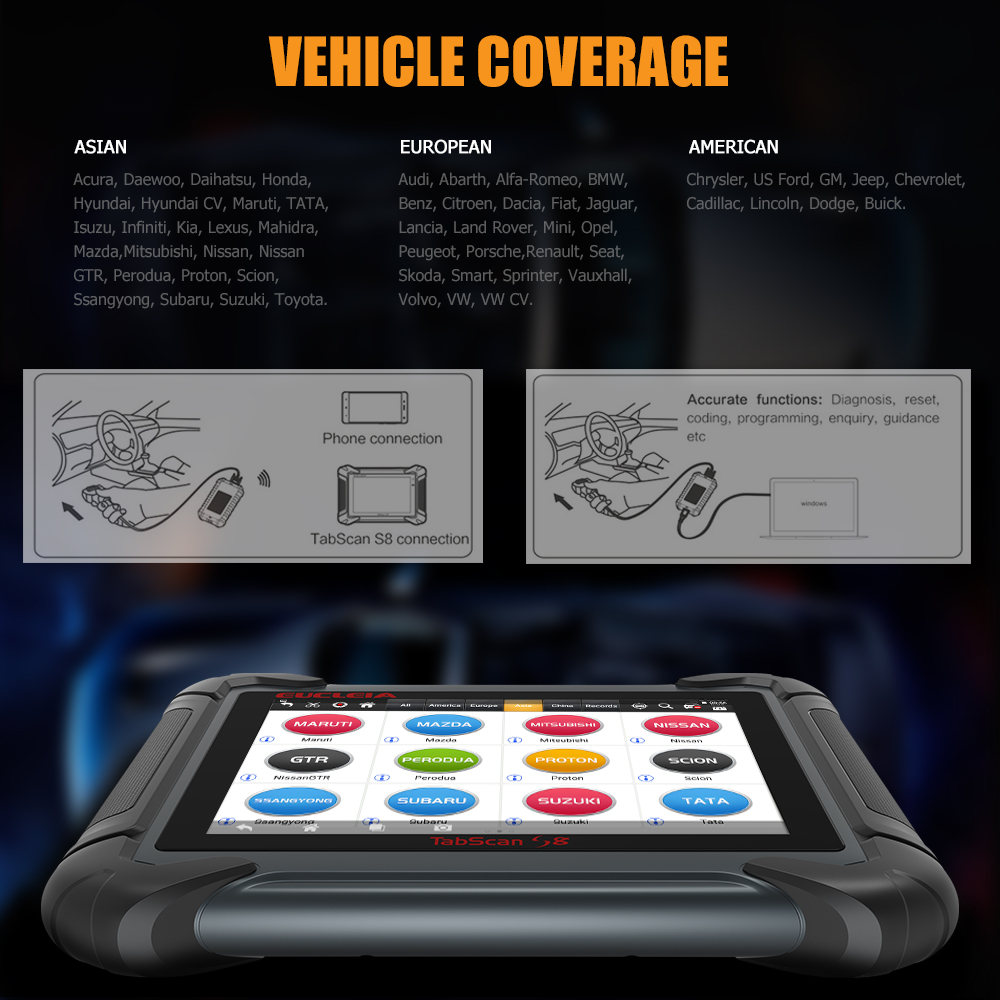

Tabscan S8 Pro Support Car Models:

Asian: Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Maruti, TATA, Isuzu, Infiniti, Kia, Lexus, Mahidra, Mazda,
Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Scion, Ssangyong, Subaru, Suzuki, Toyota.

European: Audi, Abarth, Alfa-Romeo, BMW, Benz, Citroen, Dacia, Fiat, Jaguar, Lancia, Land Rover, Mini, Opel, Peugeot, Porsche,
Renault, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VW CV.

USA: Chrysler, US Ford, GM, Jeep, Chevrolet, Cadillac, Lincoln, Dodge, Buick.

Parameter:

Model S8 Pro
PIC
CPU ARM Cortex-A17
1.8G
Quad-core
Platform Rockchip RK3288W
OS Android 6.1
RAM DDR3L 4GB
Storage eMMC 32GB
Dispaly IPS,8 inch LCD display
Resolution: 1280x800
Brightness: 350cd/m2
Touch Screen G+FF, 10-point touch, COF, frame fit, 2.5D
SD card External, maximum support 64GB

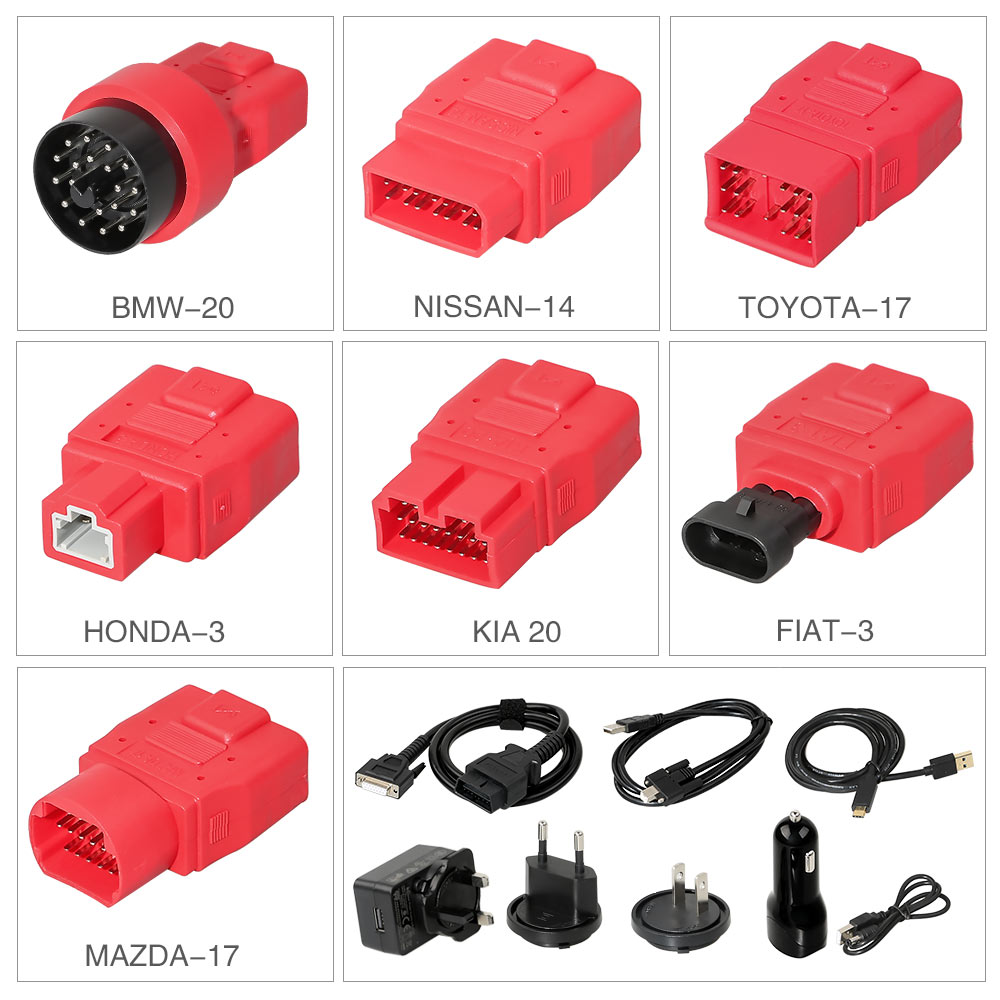

Connector TOYOTA-17
NISSAN-14
MAZDA-17
KIA-20
HONDA-3
FIAT-3
BWM-20

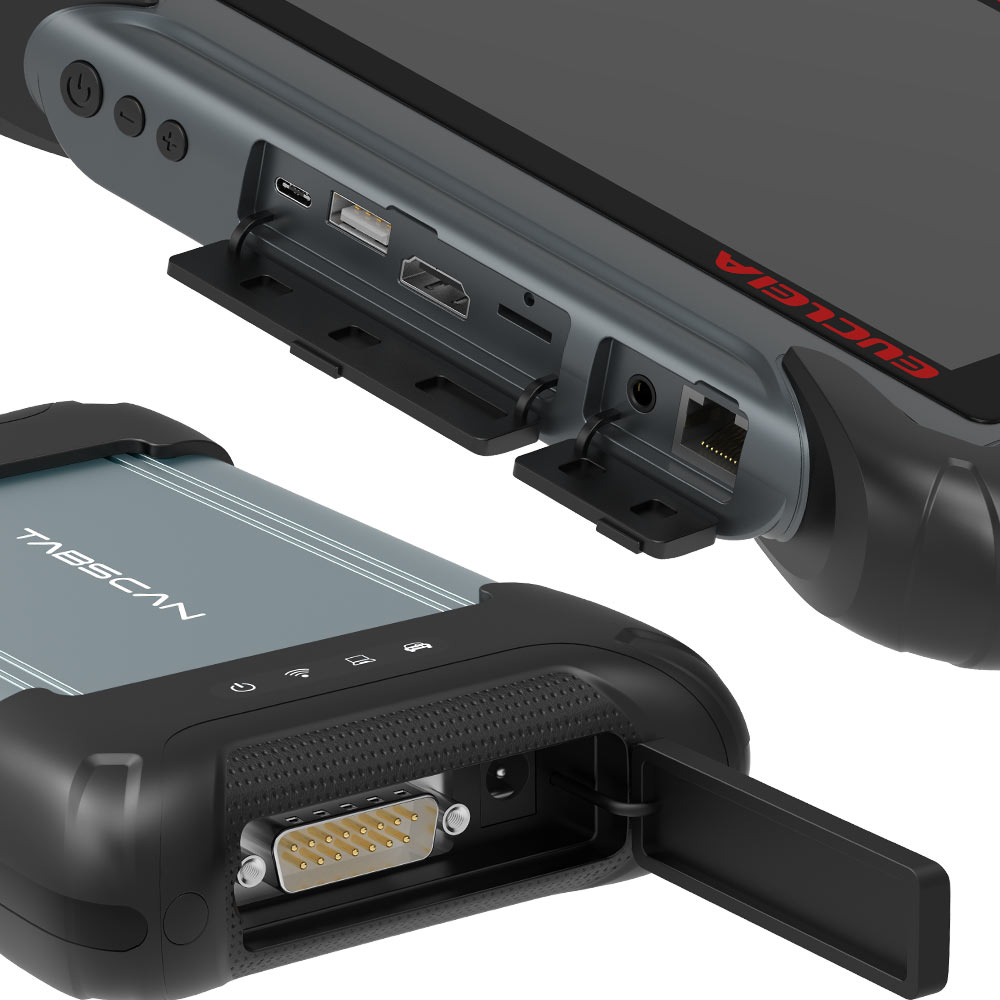

WIFI WiFi wireless internet access 2.4G/5G(802.11a/b/g/n)
Camera Rear 8 megapixel, auto focus, 2.2F, flash
Audio 0.8W dual channel amplifier output
3.5 audio headphone port input
HDMI HDMI video output 1080P, HDMI 1.3c, HDCP
RJ45 Gigabit network port
Network adaptation
Charging interface Type-C USB
USB port USB Host
High speed 480Mbps

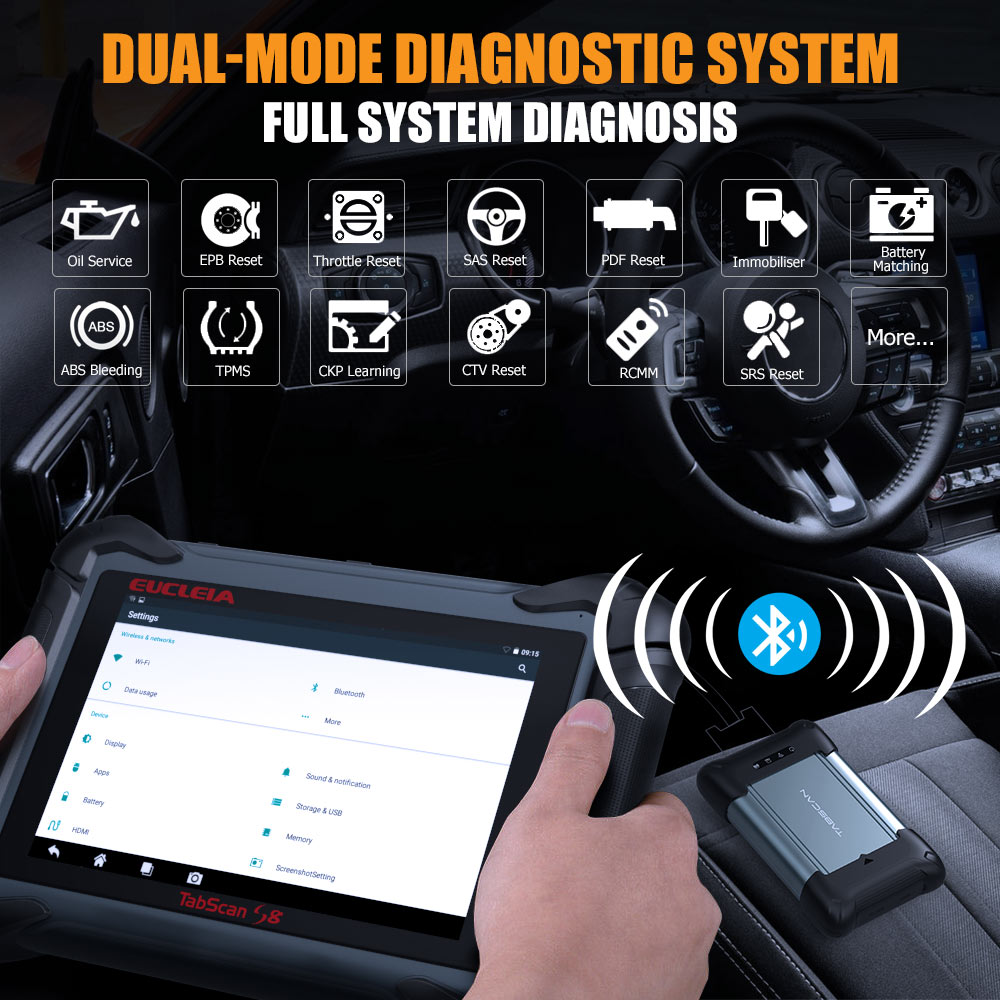

Connection method Bluetooth V4.0 high speed
Vehicle communication interface VCI BOX T6,DB15
Features Full system diagnosis
Datastream
Action test
13 maintainence functions
Coding(hidden function activate)
Live voltage
Live connection
Auto Vin technology
One click update
Function windows switch
Remote assistance
13 maintainence functions Oil service
EPB reset
Throttle reset
SAS reset
DPF reset
Immobilizer
Battery matching
ABS exhaust
TPMS
CKP Learning
CVT Reset
RCMM
SRS Reset

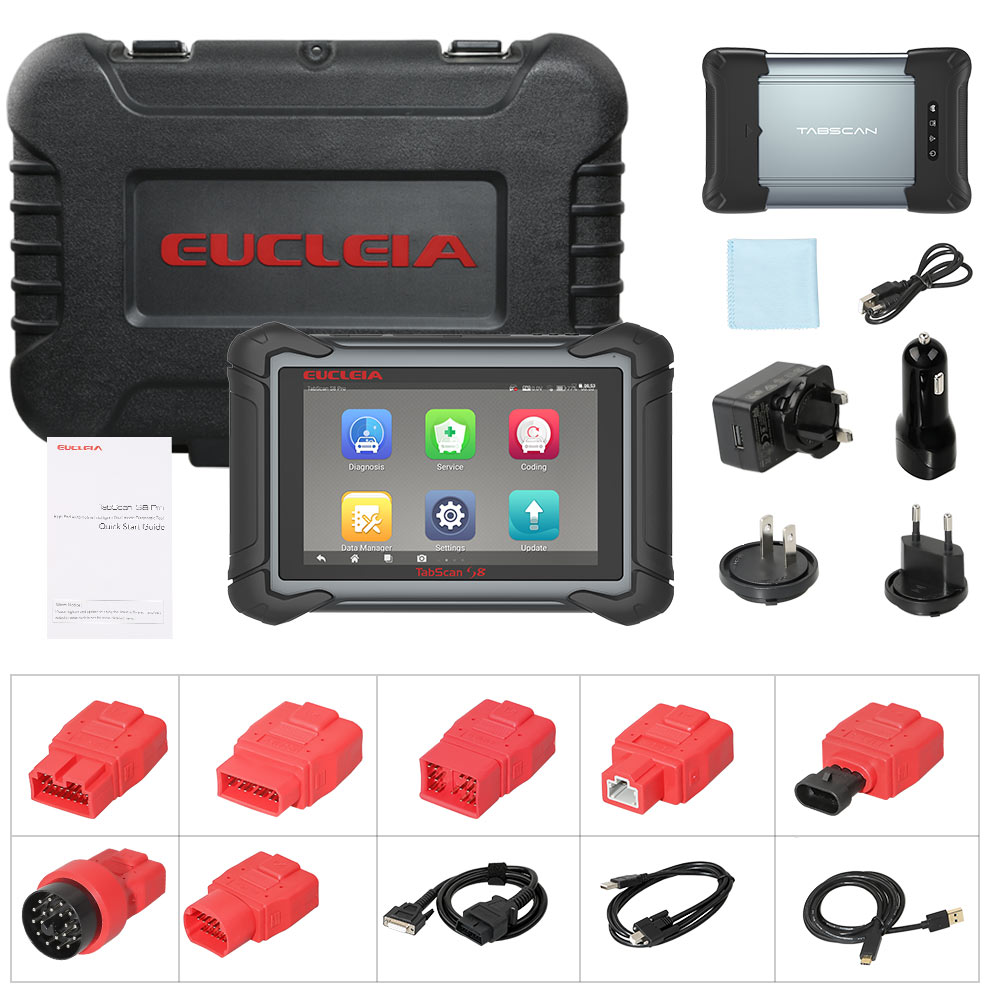

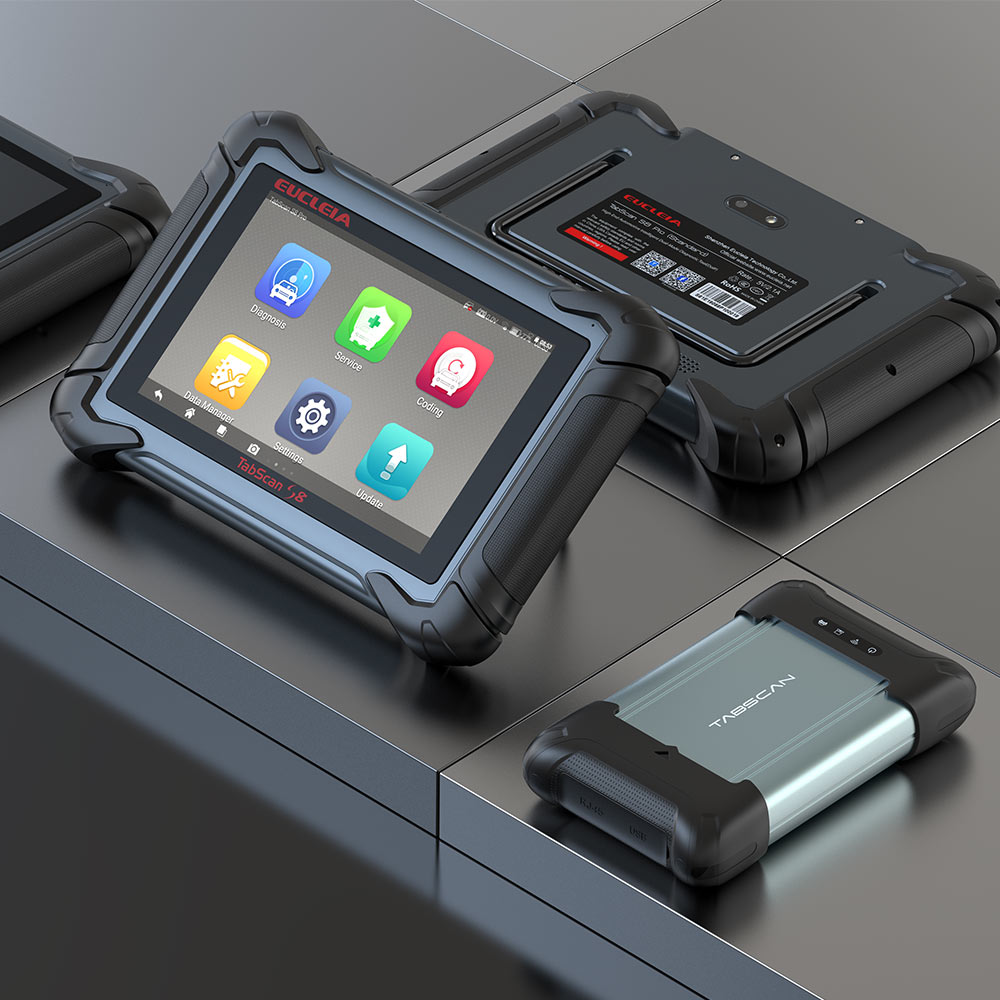

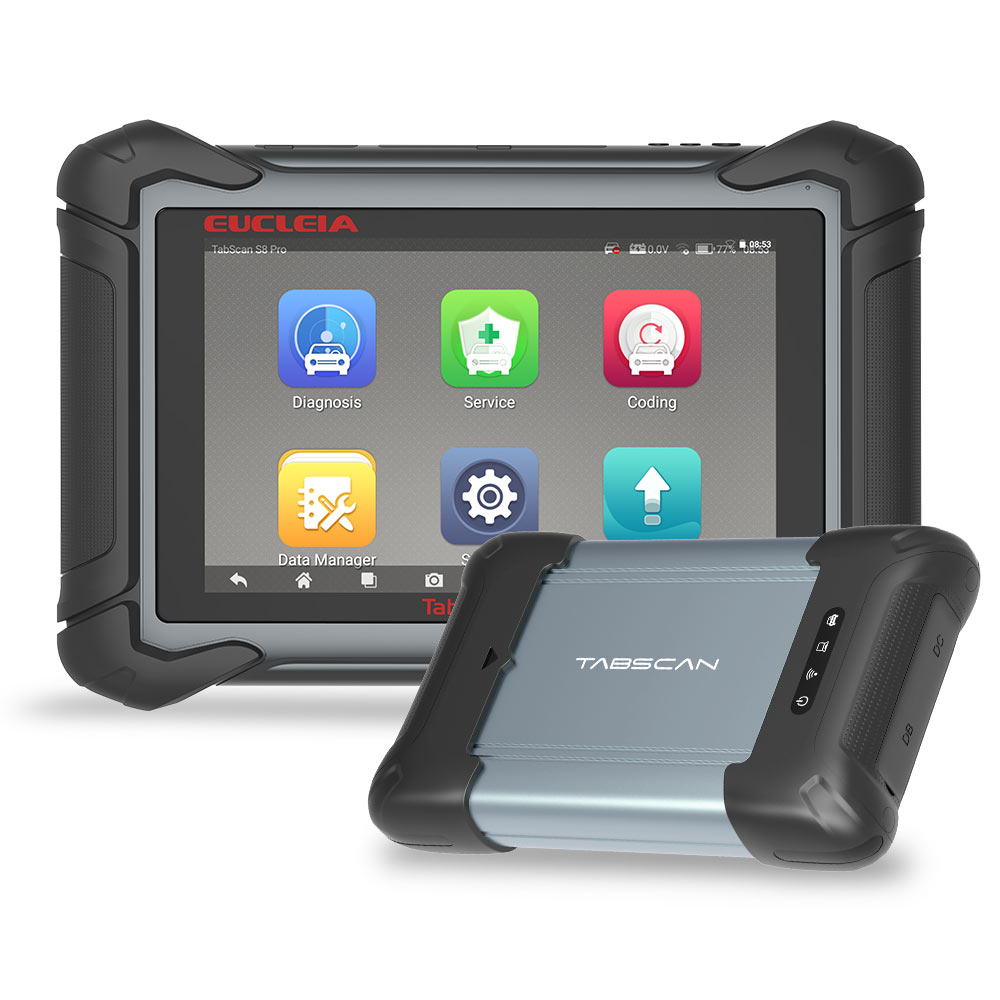

Package includes:

1pc x Tabscan S8 Pro

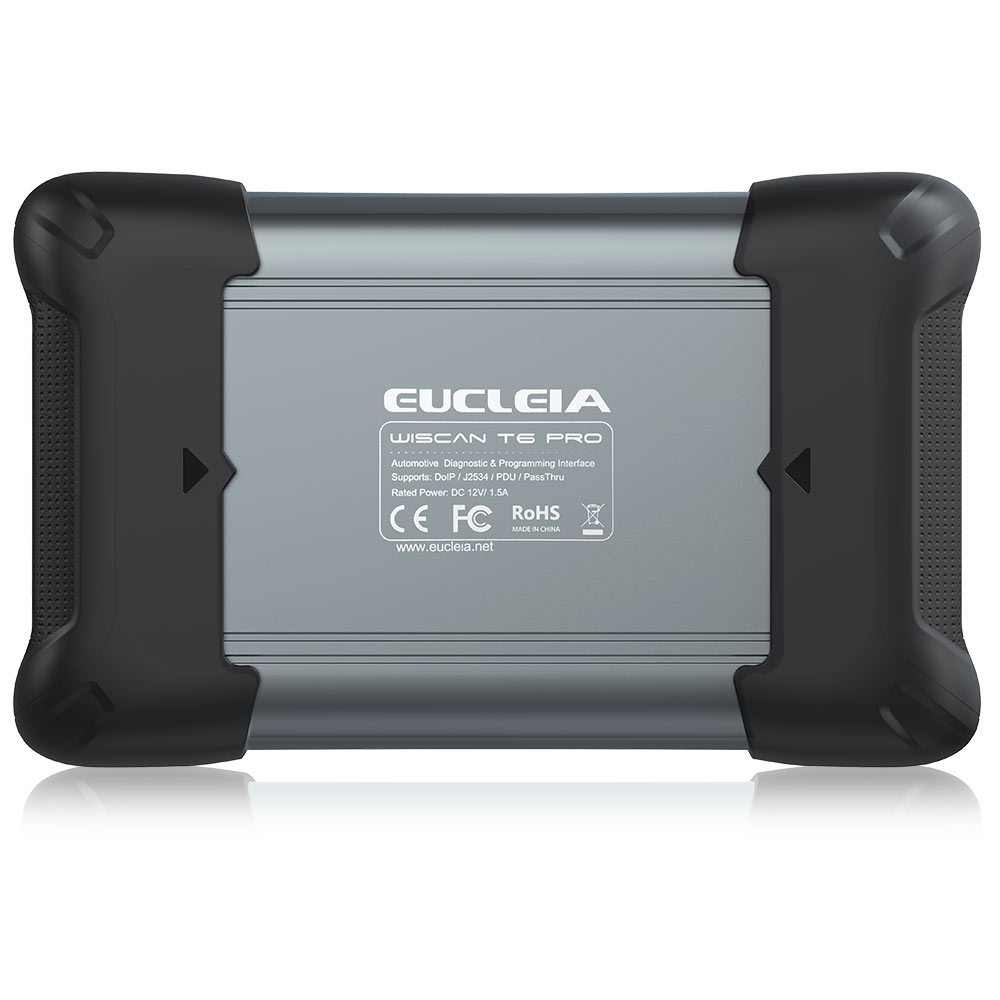

1pc x Wiscan T6 Pro
1pc x Main cable
1pc x OBDII Adapter
7pcs x OBD1 to OBD2 Connector
1pc x T6 Pro USB Cable
1pc x Plastic case
1pc x User's Manual
