Autel MaxiSys MS908s Pro Diagnostic Platform

En stock. Numéro d'article: No.SP331

Achat immédiat: 3,710
Promotion du festival de printemps!
Recommandé: Renolink VAG OBD Helper
Livraison:
Livraison gratuite Livraison Express Service    Délai de livraison estimé: 3-5 jours de travail. Détails
Poids:
10.1KG
Paquet:
65cm*43cm*19cm     ( Inch: 25.53*16.89*7.46 )
Résultats:
Retour de remboursement dans 7 jours, l'acheteur paie les frais de retour. Lire les Détails »

Description du produit

MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

Autel MaxiSys MS908s Pro Diagnostic Platform

MaxiSys MS908s Pro Description:

One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.


MaxiSys MS908s Pro Features:
Extraordinarily powerful Cortex A7+A15 six-core processor
 9.7” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
 Internal reliable 64GB On-board Memory for better performance
 Built-in 8-megapixel rear camera with autofocus and flashlight
 The VCI connects to the main unit wirelessly with up to 70 meters working range
 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
 Unique ergonomic design with rubberized outer protection and a rugged internal housing
 Open source Android Operating System for fast boot-up and multitasking
 Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
 Exceptional OE-Level system coverage for all electronic systems
 Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
 Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
 Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
 Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues

Specifications

Operating System   AndroidTM 4.4.2, KitKat
Processor   Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory   2GB RAM & 64GB On-board Memory
Display   9.7 inch LED capacitive touch screen with 1024x768 resolution
Connectivity   Wi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear)   8.0 Megapixel, AF with Flashlight
Sensors   Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output   Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery   11000 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage   12 V (9-24 V)
Power Consumption   6.5 W
Operating Temp.   0 to 50°C (32 to 122°F)
Storage Temp.   -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)   300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight   NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
Protocols   ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN

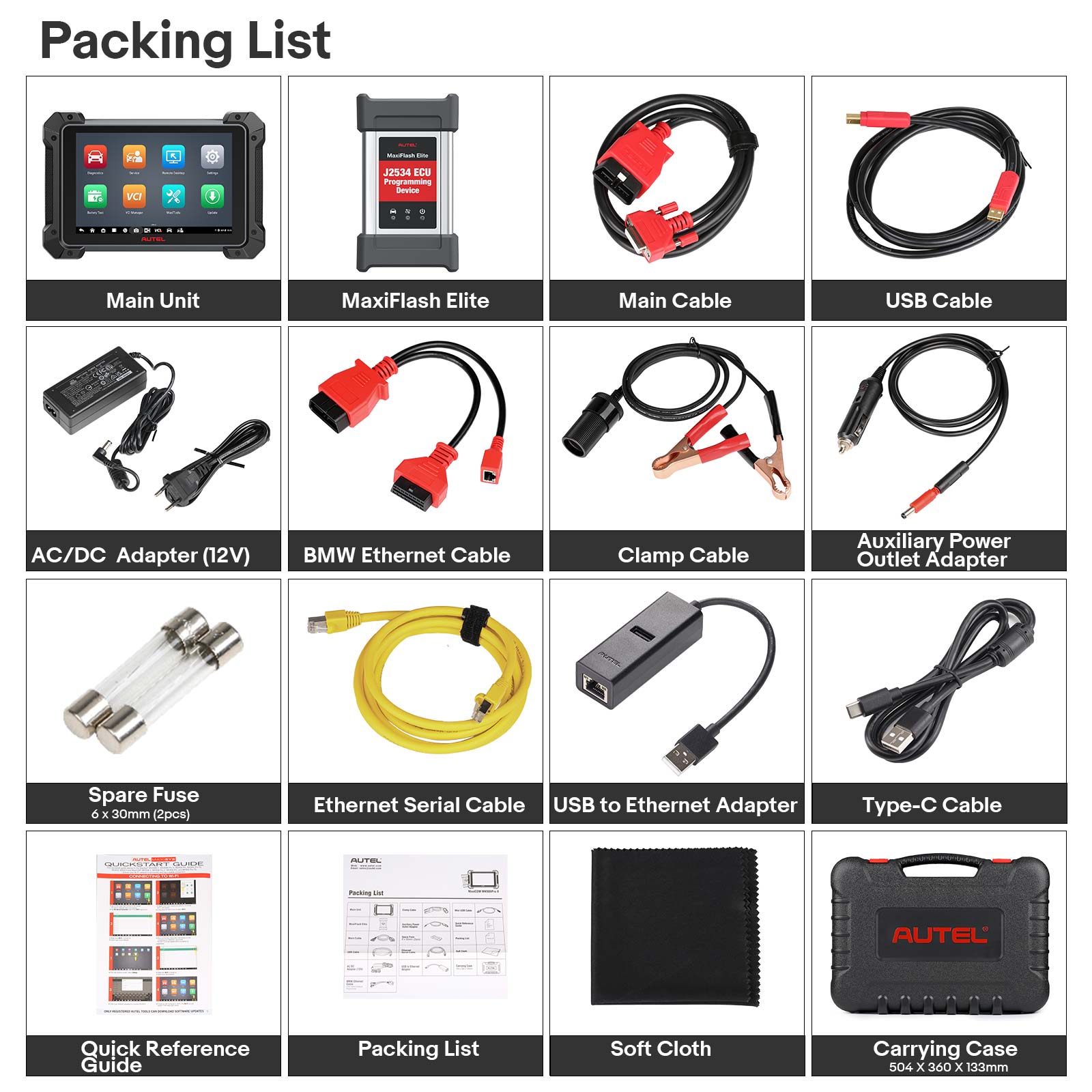

Accessories:
